Product Information
Description

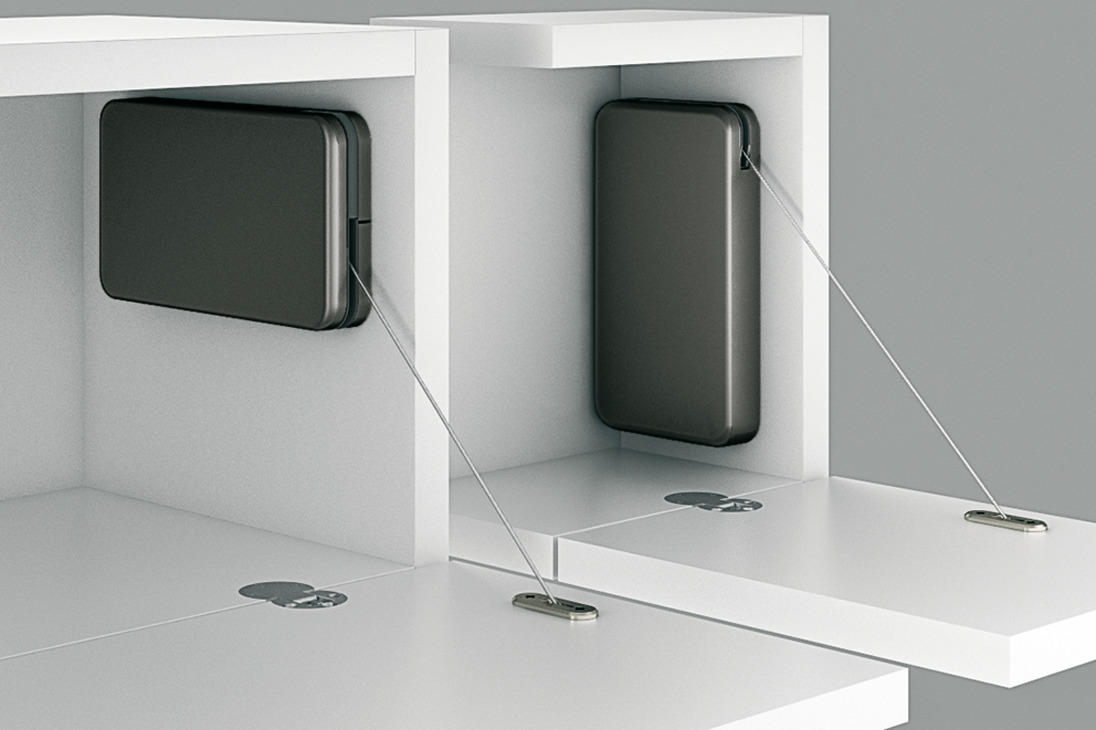

Hafele 365.47.334 Flap Stay, Miniwinch
Model: D, blackSuitable for : For wooden doors, with adjustable breaking effect and soft open and solft closing mechanism
Left or right hand useSize : Housing: W x L x D: 89 x 23 x 163 mm (3 1/2 x 15/16 x 6 7/16") when installed horizontally Internal cabinet depth : min. (7 11/16") 196 mm (horizontally), min. (4 5/16") 110 mm (vertically) For flap height : 380-430 mm Flap weight : max. (26.4 lbs) 12 kg Installation : For screw fixing with Euro screws Adjustment : Opening and closing force, opening angle Material : Fitting and cover caps: Plastic, front fixing bracket: Zinc alloy Supplied with : Front fixing bracket
Cover cap
Mounting material
Optional items:
Zinc alloy, for panel thickness from 18 mm
Flap Hinge, 3-Way Adjustable and Detachable, Zinc 16 mmSpecifications
