Hafele 001.34.200 Drawer Guide Locating Tool For locating pilot holes for all brands of drawer guides

Product Information

• Description

  Manufacturer: Hafele
  Item: 001.34.200

  Product Title: Drawer Guide Locating Tool, For locating pilot holes for all brands of drawer guides

  Category: Drawer Guide Locating Tool, For locating pilot holes for all brands of drawer guides

  Item Details …

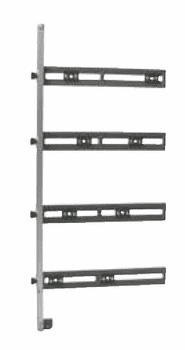

  - Light-weight aluminum to a ± .005" tolerance, insuring proper guide positioning

  - Positions guides for overlay and inset conditions

  - Install 1 to 4 guides in a single operation

  - For locating pilot holes for all brands of drawer guides, European and American

  - Use #5 vix bit to drill pilot holes for wood screws, or #14 vix bit for varianta

  - 28 3/4” length designed to clear existing counter tops

  - Product type : Drawer Guide Locating Tool

  - Area of application : Cuts a mortice for lock body and faceplates of most mortice locks and latches

  - Material : AluminumPolycarbonateSteel


  Additional Information …

  Order Euro Bit self-centering tool separately.
