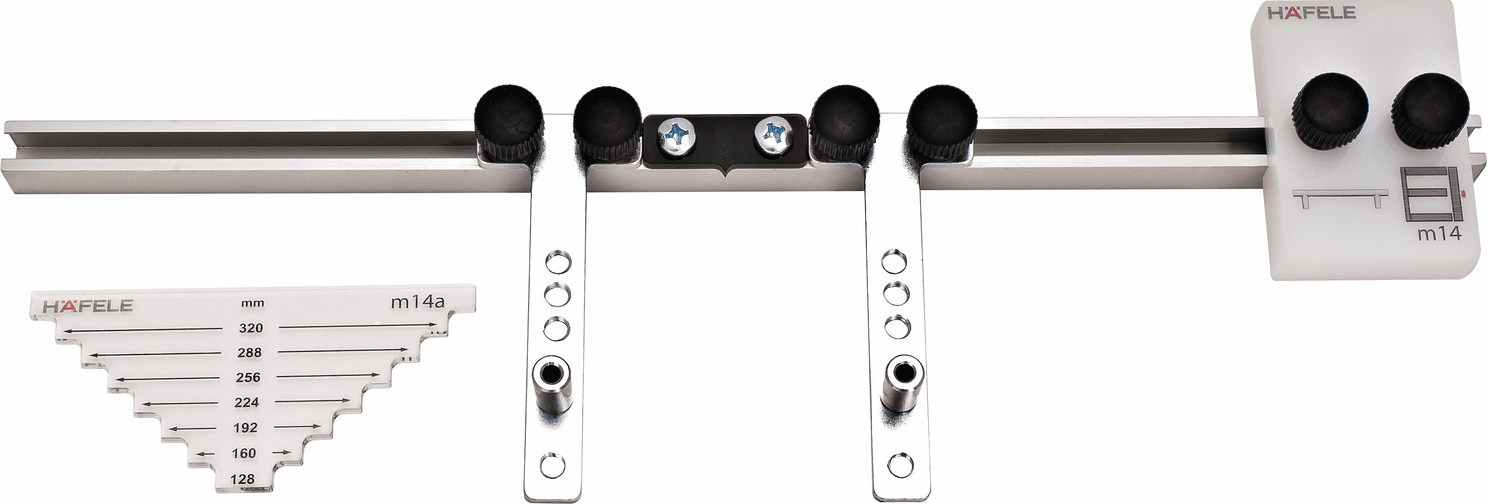

Hafele 001.35.040 Drilling Jig, for furniture handles

Product Information

• Description

  Manufacturer: Hafele
  Item: 001.35.040

  Product Title: Handle Drilling Jig, for handles,

  Category: Handle Drilling Jig, for handles,

  Item Details …

  - Product type : Handle Drilling Jig

  - Area of application : For exact drilling of holes for all handles with standard hole distance 96 - 320 mm (3 13/16" - 12 19/32")

  - Material : PlexiglasAluminum

  - Length : 21 mm

  - Supplied with:

  - Mounting instructions


  Additional Information …

  Not suitable for profiles and inset handles.Must be used ?5 mm drill bit.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  Handle Drilling Jig Operator's Manual

  TCH_Furniture_Cabinetry_Hardware_2022|Page 12.73

  Decorative_Catalog_2024|Page 1.343



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_12.43-12.43.pdf
