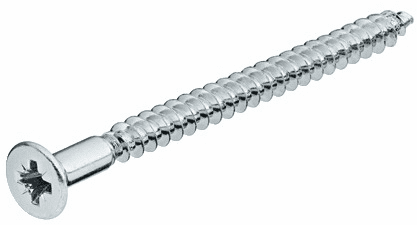

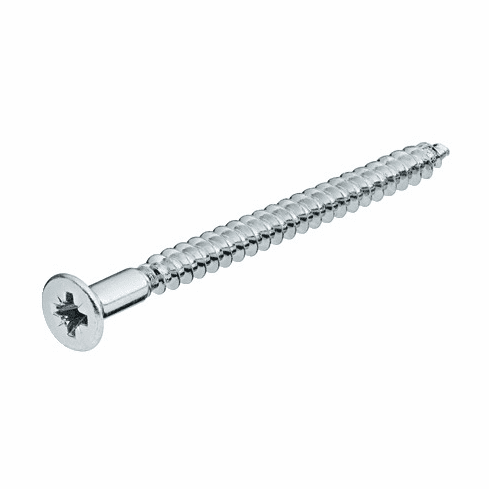

Hafele 015.01.962 Flat Countersunk Head Screw, Hospa, countersunk head, PZ, galvanized, central hole 2.5 mm Length: #9 x 1 1/2"

Product Information

• Description

  Manufacturer: Hafele
  Item: 015.01.962

  Product Title: Flat Countersunk Head Screw, Hospa, countersunk head, PZ, zinc plated, central hole 2.5 mm, Length: #9 x 1 1/2"

  Category: Flat Countersunk Head Screw, Hospa, countersunk head, PZ, zinc plated, central hole 2.5 mm,

  Item Details …

  - Color/finish : Zinc plated

  - Material : Steel

  - Thread Ø : 4.50 mm

  - Head Ø : 9.00 mm

  - Screw Ø : #9

  - Type of head : Countersunk head

  - Drive : PZ cross slot

  - Thread : Partially Threaded

  - Packing unit : Orga-Box

  - Version : with 2.5 mm central hole for secure cover cap retention

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Furniture_Cabinetry_Hardware_2022|Page 12.12



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_11.136-11.141.pdf

  Hafele 015.01.962, 015-01-962, 01501962, 015.01


  Specifications/Hafele Catalog - Page# FC11.148: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Connectors & Shelf Supports Catalog Return to: All Hafele Catalogs
