Hafele 155.00.230 Inset Handle, Zinc Matt aluminum

Product Information

• Description

  Manufacturer: Hafele
  Item: 155.00.230

  Product Title: Inset Handle, Zinc, Matt aluminum

  Category: Inset Handle, Zinc,

  Item Details …

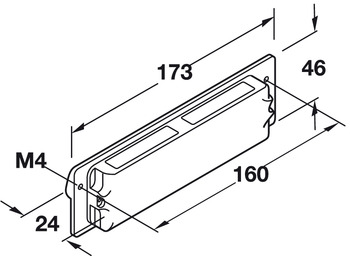

  - External dimensions : 174 x 46 mm

  - Housing dimensions : 150 x 40 mm

  - Housing depth : 15.00 mm

  - Hole spacing mm : 160 mm

  - Clearance : 8.00 mm

  - Inset : 13.00 mm

  - Material : Zinc alloy

  - Data-driven technical data table ___

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Decorative_Catalog_2024|Page 1.232



• Brand PDF Catalogs

  Click on a Category to open a PDF catalog:

  Sliding and Folding Catalog

  Fineline Brochure

  Free Flap Fittings Brochure

  The Complete Architectural Hardware Catalog

  Dialock In Hotels Catalog

  Dialock System Catalog

  IXConnect Invisible Heroes

  One Room One Face Catalog

  Architectural Hardware: American Standard Catalog

  Closet Catalog

  Decorative Wood Catalog

  Cornerstone Catalog

  Decorative Hardware Catalog

  Kitchen Solutions Catalog

  Loox5 Lighting Catalog

  Furniture Cabinetry Hardware Catalog

  Designing Accessibility HEWI Catalog

  The Complete Cabinet



• Required Products & Optional Accessories

  Optional Accessories:



  • Modified Truss Head Screw, M4, Combination Cross/Slot Drive
