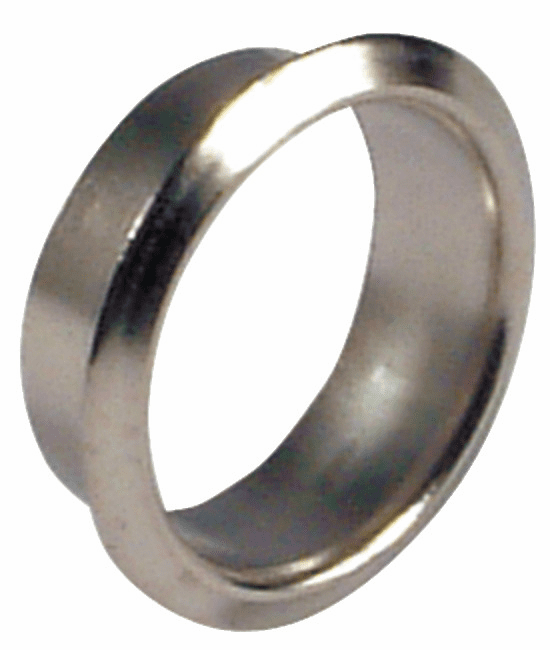

Hafele 210.04.070 Cylinder Rosette, 24 mm Timberline - modular removable core locking system, Matt nickel

Product Information

• Description

  Manufacturer: Hafele
  Item: 210.04.070

  Product Title: Cylinder Rosette, Diameter:24 mm, Timberline modular removable core locking system, Matt nickel

  Category: Cylinder Rosette, Ø24 mm, Timberline modular removable core locking system

  Item Details …

  - Separates the lock core from cylinder housing

  - Any combination of locking systems can be obtained

  - Manufacturer can install fully functional locking systems

  - Simplifies the planning and changing of locking systems

  - Lock cores can be replaced with the aid of the removal key

  - Material : Steel

  - Suitable for : Any cylinder body


  Additional Information …

  The cylinder housings and lock cores are marked (see diagram above). A series of furniture doors can all be locked with the same direction of turn if the markings are positioned identically. Requires ø19 mm hole for installation with lock cylinder.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 10.6



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_10.5-10.5.pdf

  Hafele 210.04.070, 210-04-070, 21004070, 210.04


  Specifications/Hafele Catalog - Page# FC10.6: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Lockers & Locking Systems Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Required Products & Optional Accessories

  Optional Accessories:



  • Snap-In Lock Core, Keyed Alike
