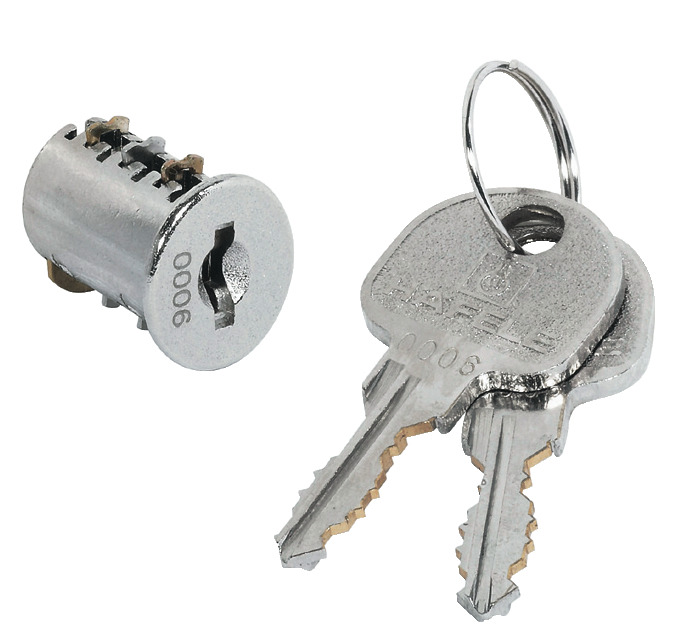

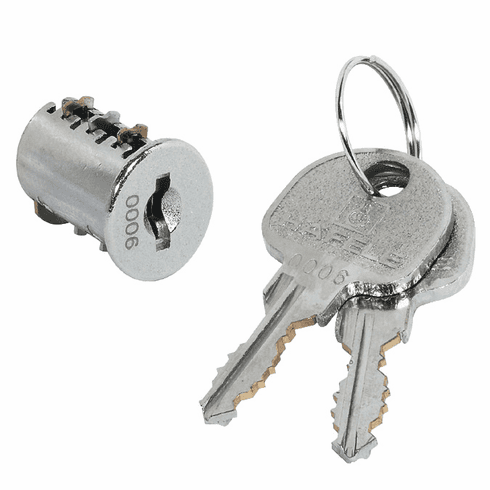

Hafele 210.40.637 Plate-Cylinder Removable Core, Keyed Alike, Symo 3000 Plate cylinder with key, SH37

Product Information

• Description

  Manufacturer: Hafele
  Item: 210.40.637

  Product Title: Plate-Cylinder Removable Core, Keyed Alike, Symo 3000, Plate cylinder with key, SH37

  Category: ,

  Item Details …

  - Key change : 3,000 different key changes are possible

  - Mounting : Left hand or right hand

  - Key Type : Cut key

  - Color/finish : Nickel plated

  - Area of application : For all locks and rotary handles of the Symo system

  - Version : Locking direction: left and right

  - Material : Zinc alloy housing,brass plate levers

  - Cylinder shape : round cylinder

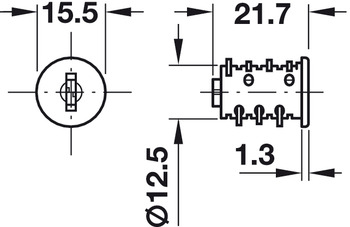

  - Cylinder length : 21.70 mm

  - Cylinder Diameter: (mm) : 12.50 mm

  - Type of locking : with 6 plate levers

  - Installation : For plug fitting

  - with key : Yes

  - Suitable for : All lock bodies within the SYMO 3000 system

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data



• Specifications

  Hafele 210.40.637 Lock Symo Core Sh 37 Zn Nip (5X2X2 Cm)


  Product Specifications:
  Contact us for more information.

• Brand PDF Catalogs

  Click on a Category to open a PDF catalog:

  Sliding and Folding Catalog

  Fineline Brochure

  Free Flap Fittings Brochure

  The Complete Architectural Hardware Catalog

  Dialock In Hotels Catalog

  Dialock System Catalog

  IXConnect Invisible Heroes

  One Room One Face Catalog

  Architectural Hardware: American Standard Catalog

  Closet Catalog

  Decorative Wood Catalog

  Cornerstone Catalog

  Decorative Hardware Catalog

  Kitchen Solutions Catalog

  Loox5 Lighting Catalog

  Furniture Cabinetry Hardware Catalog

  Designing Accessibility HEWI Catalog

  The Complete Cabinet



• Required Products & Optional Accessories

  Optional Accessories:



  • Master Key, for Plate-Cylinders/Cut Key
  • Key Blank, Steel
  • Removal Blank, For Symo Universal cylinder core, warehouse locking system
  • Cylinder Rosette, 3/4"
