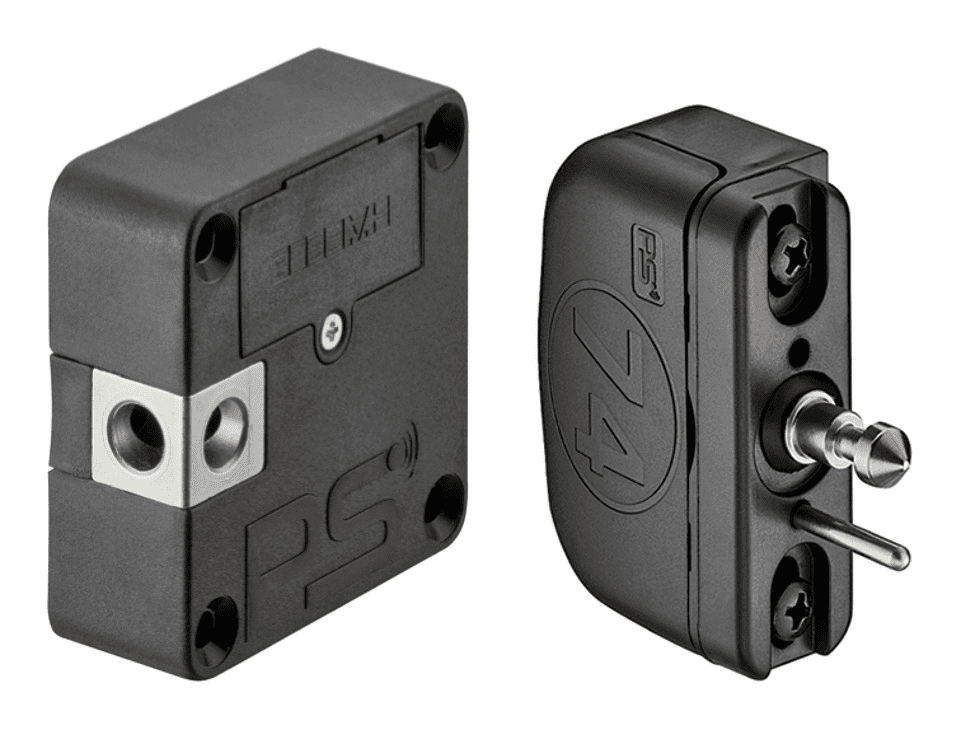

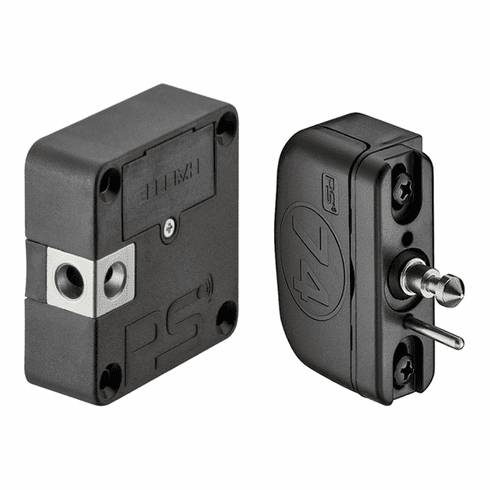

Hafele 231.07.502 SOLO 12, Electronic Furniture Lock, complete set

Product Information

• Description

  Manufacturer: Hafele
  Item: 231.07.502

  Product Title: Furniture Lock Set,

  Category: Furniture Lock Set,

  Item Details …

  -

  - Technical Data

  -

  - Technology: 125 KHz proximity card

  - Degree of protection: IP20

  - Battery: CR 123 3V

  - Battery service life: Approx. 20,000 locking and unlocking processes

  - Number of possible keys: 49

  - Operating temperature: 5°C - +35°C

  - Reading Range: Card: max. 20 mm (25/32")_

  - Tag: max. 10 mm (3/8")

  - Product type : Furniture Lock Set

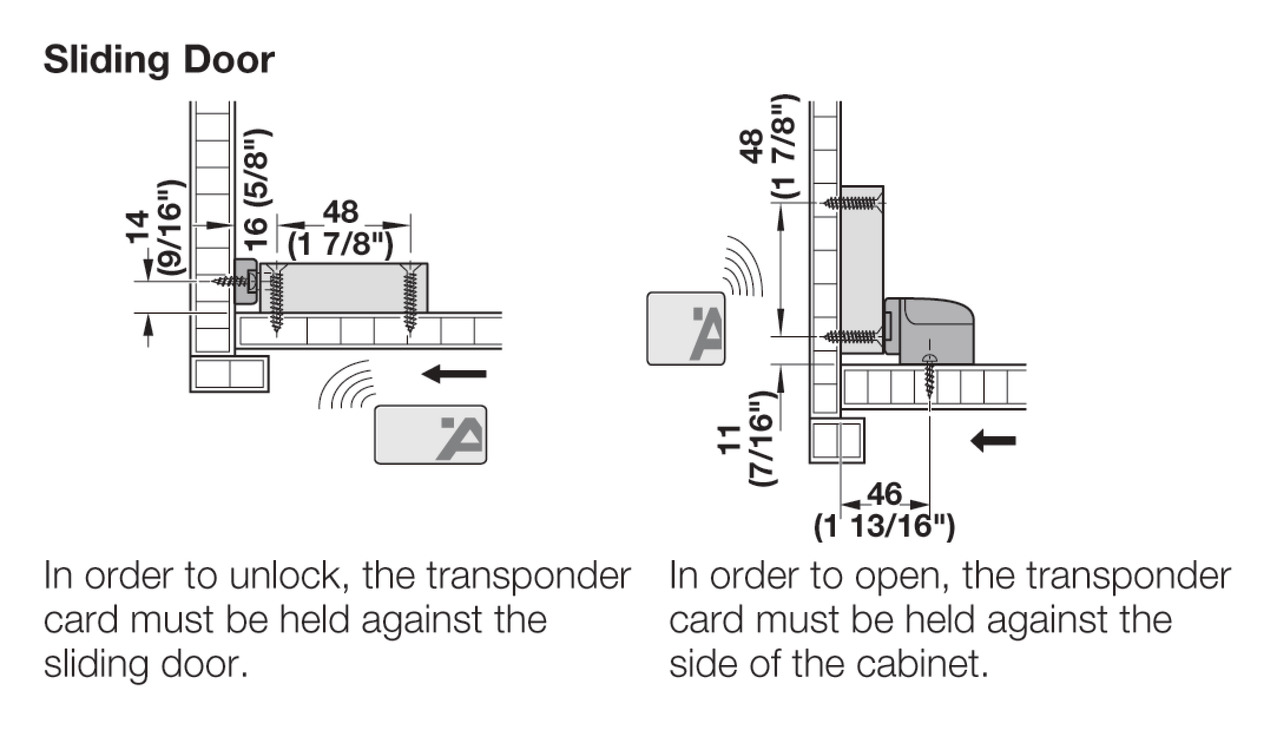

  - Area of application : Intelligent locker lock for indoor user in wardrobes, lockers and cabinets for wood, glass or sliding doors

  - Material : Plastic

  - Color/finish : Black

  - Functionality : Standard mode:One or several (optional) user keys have a fixed allocation to one or several (optional) lockers for locking and unlocking. The lock remains open for 3 seconds after opening, and locks again automatically.Wellness mode (free choice of locker): OptionalAny user card can lock and open locker. The user card is assigned to the selected locker only this user card can unlock the locker. When the locker is unlocked, the assignment is deleted.Toggle mode (deadbolt lock function): OptionalWhen an authorized transponder is held in front of the device, the lock unlocks and remains unlocked. When the authorized transponder is presented again, the lock is locked.

  - Supplied with:

  - 1 Programming card

  - 2 User cards

  - 1 CR123A battery

  - Mounting screws


  Additional Information …

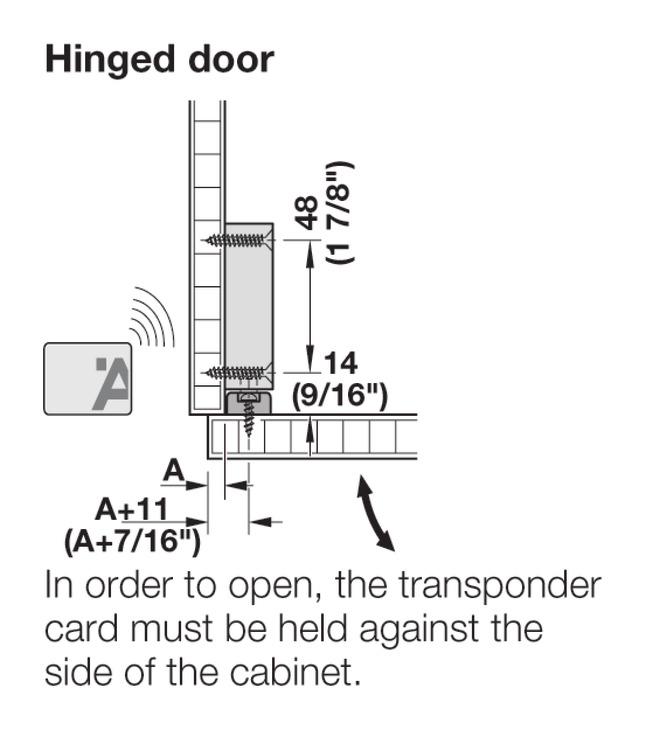

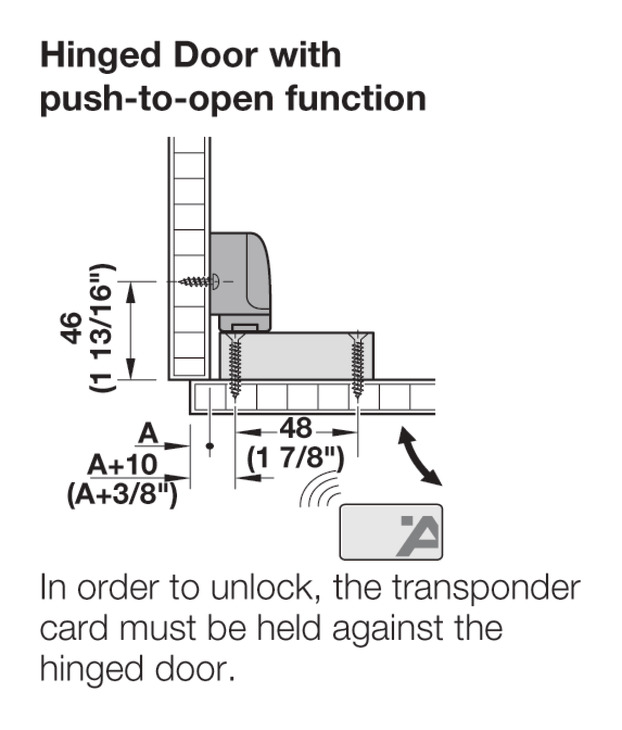

  Particularly suitable for furniture with soft and self-closing mechanisms. For drawers and hinged doors with push-to-open function, the locking component must also be installed.If the battery voltage is too low, the lock no longer locks and a 15 second continuous tone is emitted.In order to avoid interference between locks, a minimum distance of 10 cm (3 15/16") must be maintained between installed locks and also during storage. If the distance is less than the minimum, continuous communication will take place between the locks, which will drain the battery. To avoid unnecessary battery draining, do not insert the battery until start-up.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 10.84A
