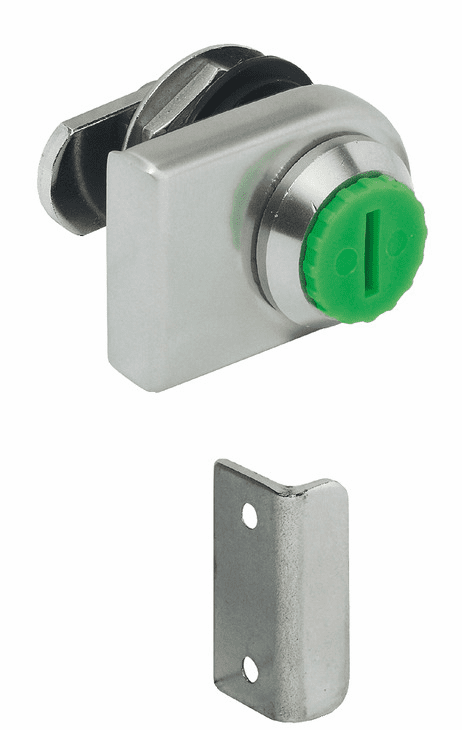

Hafele 233.42.600 Glass Door Cam Lock, Symo 3000 For combination with Symo cylinder removable core, Left hand, polished nickel

Product Information

• Description

  Manufacturer: Hafele
  Item: 233.42.600

  Product Title: Glass Door Cam Lock, Symo 3000, For combination with Symo cylinder removable core, Left hand, polished nickel

  Category: Glass Door Cam Lock, Symo 3000, For combination with Symo cylinder removable core

  Item Details …

  - Closure travel : 180°

  - Color/finish : Nickel plated, Nickel plated polished

  - For door thickness min. : 5/32"

  - Area of application : For cylinder cores which are inserted from the front on-site

  - Suitable for : With straight cam

  - Cylinder shape : prepared for round cylinder

  - Version : With straight cam

  - Material : Zinc alloy

  - For glass thickness : 4 – 10 mm

  - Installation : Screw-mount with hexagon nut

  - with key : No

  - Order reference

  - Please order counterpiece for 2-leaf sliding doors.

  - Supplied with:

  - Locking cam

  - Mounting nut

  - Angled striking plate

  - Clamping plate

  - Clamping rosette
