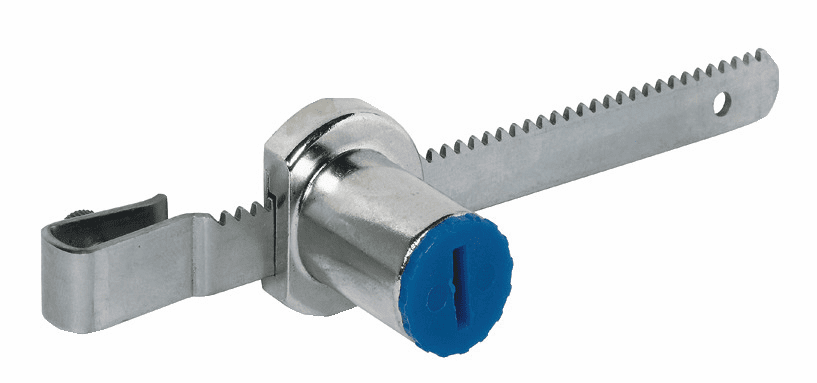

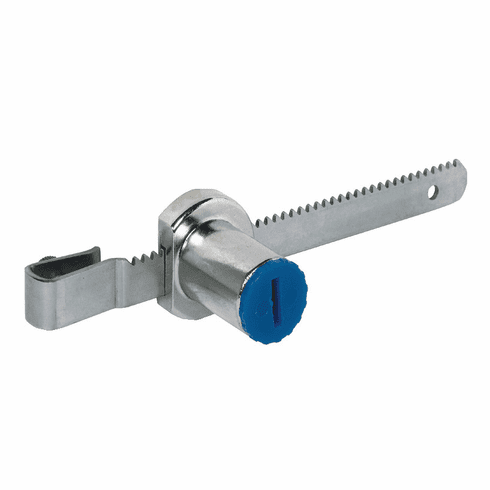

Hafele 233.44.600 Glass Sliding Door Lock, Symo 3000 For combination with Symo cylinder removable core

Product Information

• Description

  Manufacturer: Hafele
  Item: 233.44.600

  Product Title: Glass Sliding Door Lock, Symo 3000, For combination with Symo cylinder removable core, Housing: Zinc alloy, matt nickel plated, rack: Stainless steel

  Category: Glass Sliding Door Lock, Symo 3000, For combination with Symo cylinder removable core, Housing: Zinc alloy, matt nickel plated, rack: Stainless steel

  Item Details …

  - Color/finish : Housing: matt nickel plated, Lock case: Matt nickel plated

  - For door thickness min. : 5/32"

  - Area of application : For cylinder cores that are inserted from the front on-site

  - Suitable for : For sliding doors

  - Cylinder shape : prepared for round cylinder

  - Material : Case: Zinc alloyrack: Stainless steel

  - For glass thickness : 4 – 7 mm

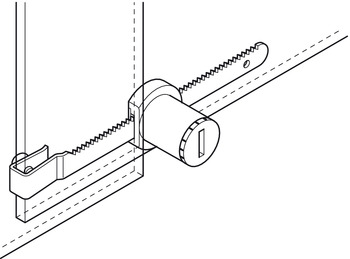

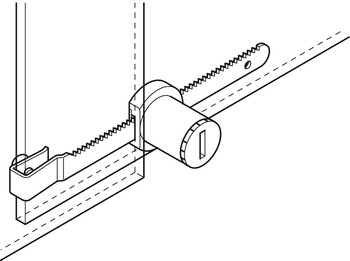

  - Installation : Rack to clip on, cylinder to slide onto rack

  - with key : No

• Data Sheet

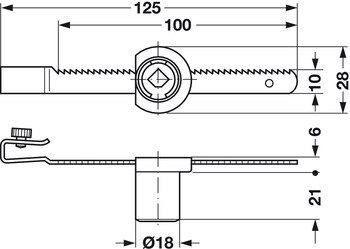

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Furniture_Cabinetry_Hardware_2022|Page 10.32



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_10.32-10.32.pdf

  Hafele 233.44.600, 233-44-600, 23344600, 233.44


  Specifications/Hafele Catalog - Page# FC10.32: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Lockers & Locking Systems Catalog Return to: All Hafele Catalogs
