Hafele 235.10.600 Cam Lock, C8102 and C8103 Series, Keyed Different National Lock - High Security, Satin brass, lipped/overlay, 1 3/16" (30 mm)

Product Information

• Description

  Manufacturer: Hafele
  Item: 235.10.600

  Product Title: Cam Lock, C8102 and C8103 Series, Keyed Different, National Lock - High Security, Satin brass, lipped/overlay, 1 3/16" (30 mm)

  Category: Cam Lock, C8102 and C8103 Series, Keyed Different, National Lock - High Security

  Item Details …

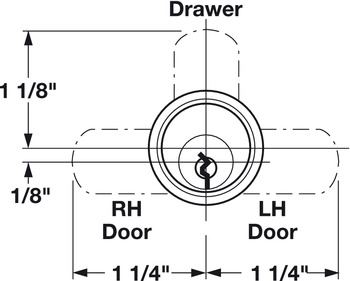

  - Through the use of a shifter, the 360° key travel turns the cam 90° in either direction. Actual application determines which cam position is the locked position. Each lock is furnished with an alternate cam for opposite cam turn.

  - Approved by the Woodworkers Institute (formerly WIC)

  - Custom Master keying and General Master key systems available upon request

  - 2000 master key codes available, special order 5 pin tumblers

  - Please include a key plan

  - Plan on 2–3 weeks to produce

  - Area of application : For drawer, left or right hand applications

  - Material : Brass

  - Supplied with:

  - 2 keys

  - 2 cams

  - Spur washer

  - Rosette


  Additional Information …

  Through the use of a shifter, the 360º key travel turns the cam 90º in either direction. Actual application determines which cam position is the locked position. Each lock is furnished with an alternate cam for opposite cam turn.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 10.39



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_10.38-10.39.pdf



• Required Products & Optional Accessories

  Optional Accessories:



  • Mounting Plate, for Cam Locks
  • Replacement Keys
