Hafele 235.10.620 Cam Lock, C8053 Series, 30 mm Cylinder National Lock - C Series, Model C8053-KD-14A

Product Information

• Description

  Manufacturer: Hafele
  Item: 235.10.620

  Product Title: Cam Lock, C8053 Series, 30 mm Cylinder, National Lock - C Series, Model C8053-KD-14A, keyed different

  Category: Cam Lock, C8053 Series, 30 mm Cylinder, National Lock - C Series

  Item Details …

  - Key is removable in both locked and unlocked positions

  - Custom Master keying available upon request

  - Material thickness : Max. 7/8"

  - Color/finish : Bright nickel

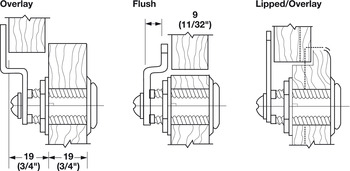

  - Area of application : For wood or metal doorsFor right and left handed doors with lipped/overlay construction (straight cam) or flush construction (formed cam)

  - Material : Zinc

  - Cylinder length : 1 3/16"

  - Supplied with:

  - 2 keys

  - Trim washer

  - 2 cams

  - 2 stop washers

  - Spur washer for wood

  - Mounting nut


  Additional Information …

  For overlay application, the combined thickness of front and frame cannot exceed the cylinder length
