Hafele 235.10.651 Cam Lock, C8060 Series, 45 mm Cylinder National Lock - C Series, Model C346A, keyed alike

Product Information

• Description

  Manufacturer: Hafele
  Item: 235.10.651

  Product Title: Cam Lock, C8060 Series, 45 mm Cylinder, National Lock - C Series, Model C346A, keyed alike

  Category: Cam Lock, C8060 Series, 45 mm Cylinder, National Lock - C Series

  Item Details …

  - Key is removable in both locked and unlocked positions

  - Custom Master keying available upon request

  - Material thickness : Max. 1 7/16"

  - Color/finish : Bright nickel

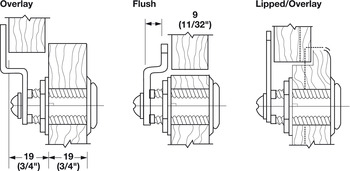

  - Installation : Lipped/overlay construction (straight cam) or flush construction (formed cam)

  - Area of application : For wood or metal doorsFor right and left handed doors with lipped/overlay construction (straight cam) or flush construction (formed cam)

  - Material : Zinc

  - Cylinder length : 1 3/4"

  - Supplied with:

  - 2 keys

  - Trim washer

  - 2 cams

  - 2 stop washers

  - Spur washer for wood

  - Mounting nut

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 10.45



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_10.42-10.45.pdf

  Hafele 235.10.651, 235-10-651, 23510651, 235.10
