Hafele 235.10.818 Cam Lock, C8055 Series, 30 mm Cylinder National Lock - C series, Model C642A, keyed alike

Product Information

• Description

  Manufacturer: Hafele
  Item: 235.10.818

  Product Title: Cam Lock, C8055 Series, (1 7/16”) 36 mm Cylinder, National Lock - C series, Model C642A, keyed alike

  Category: Cam Lock, C8055 Series, (1 7/16”) 36 mm Cylinder, National Lock - C series

  Item Details …

  - Material thickness : Max. 1 1/8"

  - Color/finish : Bright nickel

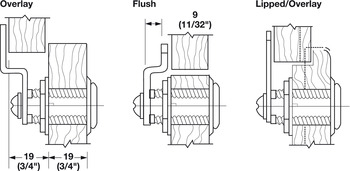

  - Area of application : For wood or metal doorsFor right or left handed doors with lipped/overlay construction (straight cam) or flush construction (flush cam)For overlay application, the combined thickness of front and frame cannot exceed the cylinder length

  - Material : Zinc

  - Cylinder length : 1 7/16"

  - Supplied with:

  - 2 keys

  - Trim washer

  - 2 cams

  - 2 stop washers

  - Spur washer for wood

  - Mounting nut


  Additional Information …

  For overlay application, the combined thickness of front and frame cannot exceed the cylinder length
