Hafele 237.59.062 DG2 Antenna Fan, 200, 5m cable

Product Information

• Description

  Manufacturer: Hafele
  Item: 237.59.062

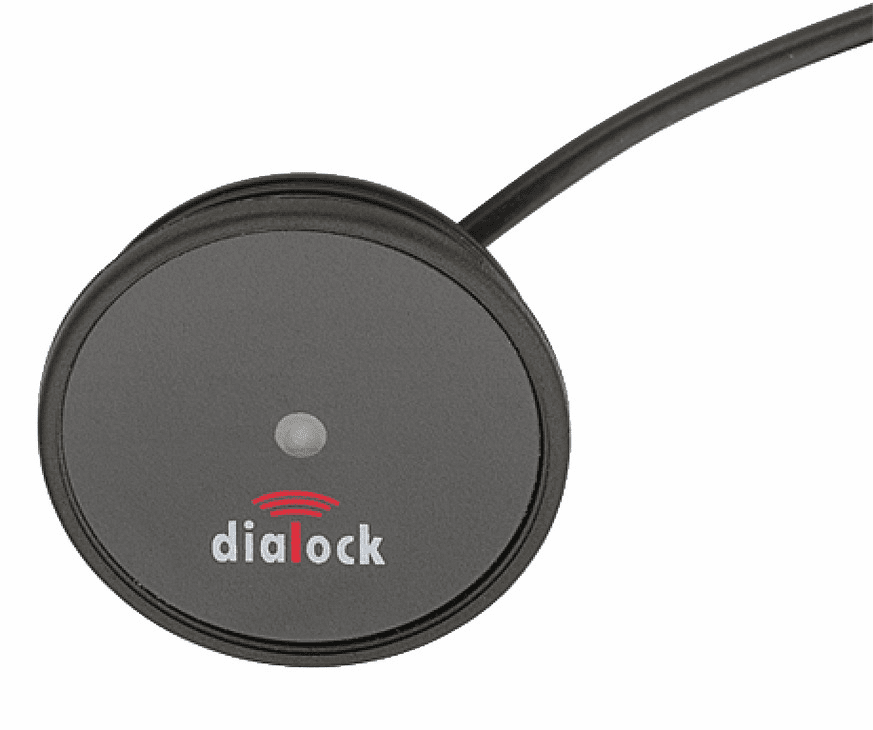

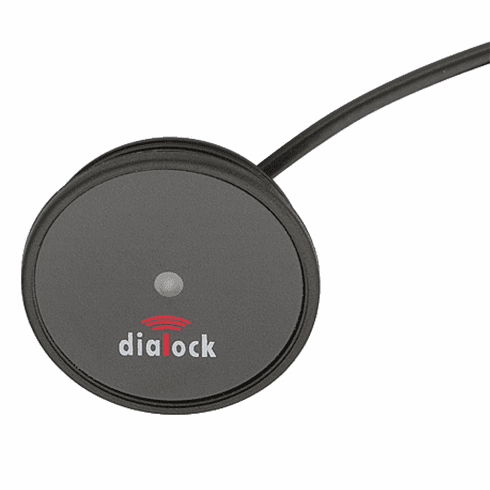

  Product Title: Antenna, FAN 200, Dialock, length: 5 m

  Category: Antenna, FAN 200, Dialock,

  Item Details …

  - Area of application : For indoor use: For installation in furniturefor FT 200 / FT 200 CAP furniture terminal

  - Version : with connecting cable and coaxial plug (SMB)offset reader unit for keys with integrated red/green LEDs, for indicating the activation status

  - RFID technology : MIFARE Classic EV1, MIFARE DESFire EV1 / EV2, Tag-it™ Iso

  - Degree of protection : IP67

  - Installation : For recess mounting in a 35/40 mm drill hole, antenna as close as possible to the front


  Additional Information …

  Reader range: Approx. 25 mm with FT 200 and FAN 200 antenna (key fob). The range may be smaller for environmental reasons if metals or magnetic fields (power supply lines), for example, are nearby. The FAN 200 antenna must not be installed behind or on metal surfaces or behind mirrors. Minimum distance between 2 antennas: 250 mm.The antenna can be connected directly to the output of the FT 200 furniture terminal.The FAN 200 antenna is not suitable for installation in metal or metal coated furniture.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  FAN 200 installation instructions

  FT 200 / FT 200 CAP - system installation instructions

  Operating instructions for FT 200 / FT 200 CAP

  Declaration of conformity

  Declaration of conformity
