Manufacturer: Hafele
Item: 237.59.071

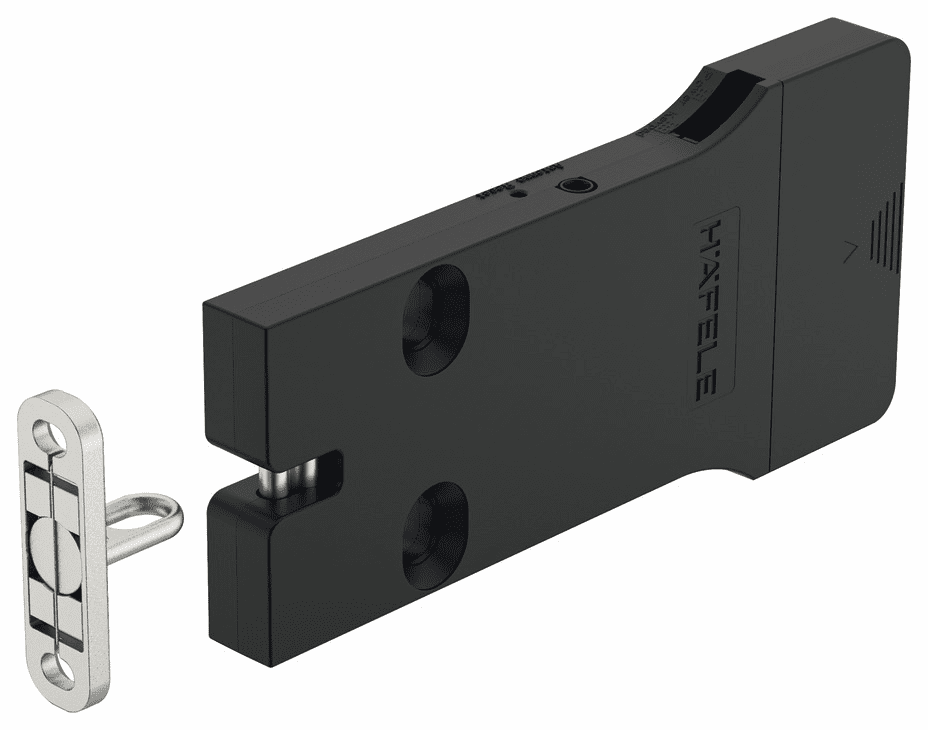

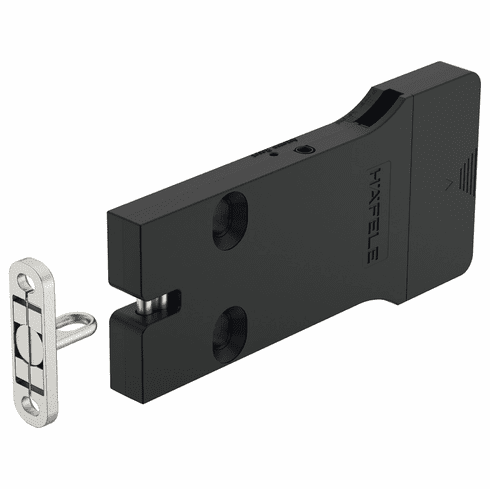

Product Title: Furniture Lock, Dialock EFL 30C, With separate feedback contact
Category: Furniture Lock, Häfele Dialock EFL 30, battery-operated lock,
Item Details …
- Ideal for individual locking points and mobile furniture
- Integration into the Dialock software or use of the Dialock Manager app for convenient configuration and management of locking points and locking authorisations
- Slim and compact dimensions
- Integrated BLE module (Bluetooth Low Energy)
- Product type : Furniture Lock
- Area of application : Battery-operated, intelligent locker lock for indoor use: For wardrobes, lockers, compartment cabinets, lockers with doors made from wood, for sliding doors or drawers.
- Version : BLE (Bluetooth 5) integrated for commissioning and configuration with the Häfele Dialock Manager app for smartphones (available for iOS and Android).With separate feedback contactElectromotive locking, locking component with magnet, lateral locking plate crossways, flat design 12 mm (installation next to drawer extension possible, distance from cabinet side panel >12 mm)
- Material : Housing: PlasticLocking bolt and locking component: Zinc alloy
- Transponder technology : MIFARE® DESFire® EV2, Tag-it™, MIFARE Classic® EV1, MIFARE® DESFire® EV1
- Functionality : Standard modeUser keys are given a fixed assignment to one or several (optional) locks for locking and unlocking.The lock remains open for 3 seconds after opening, and locks again automatically.The door status (locked/unlocked) can be identified with feedback contact and additional macro with which an alarm can be triggered.The open time can be adjusted to 1–30 seconds in the basic operation mode using the programming transponder.Free choice of lockerEvery user key can lock an open locker. When doing this, the user key is assigned to the selected locker, meaning that only this user key can unlock the locker again. When the locker is unlocked again, the assignment is deleted. The cabinet number is not stored on the user key.Toggle mode (deadbolt lock function)The lock is unlocked and remains unlocked when presenting an authorised transponder. The lock is locked again when the user key is presented again.
- For door thickness : 19 mm
Additional Information …
The EFL 30 / EFL 30c can be configured and operated in the stand-alone mode via the Dialock Manager app or as locking point in the Dialock Software using the programming card and clearing key card.Notes on operation:Minimum distance EFL 30 to EFL 30: 100 mm (vertical), 150 mm (horizontal).When using the Dialock software, please contact your responsible Häfele employee.
In order to avoid interference between locks, a minimum distance of 100 or 150 mm must be maintained when installed. If the distance is less than the minimum, continuous communication will take place between the locks, which will drain the battery. In order to avoid unnecessary battery draining, do not insert the batteries until start-up takes place.For applications where a smaller distance is required, the FT 200 with EFL 3 can be used as an alternative.
Particularly suitable for furniture constructions with soft closing and self closing mechanisms. Not suitable for drawers and hinged doors with Push-to-Open function.If the batteries are very weak, the EFL 30 can no longer be locked after opening. For this purpose, regular use is required. If the batteries are completely discharged, the EFL 30 can no longer be opened. Emergency opening can only take place if the CC 30 connection cable is connected and accessible so that the EFL 30 can be supplied with energy via the PS 30 wall plug power supply.
