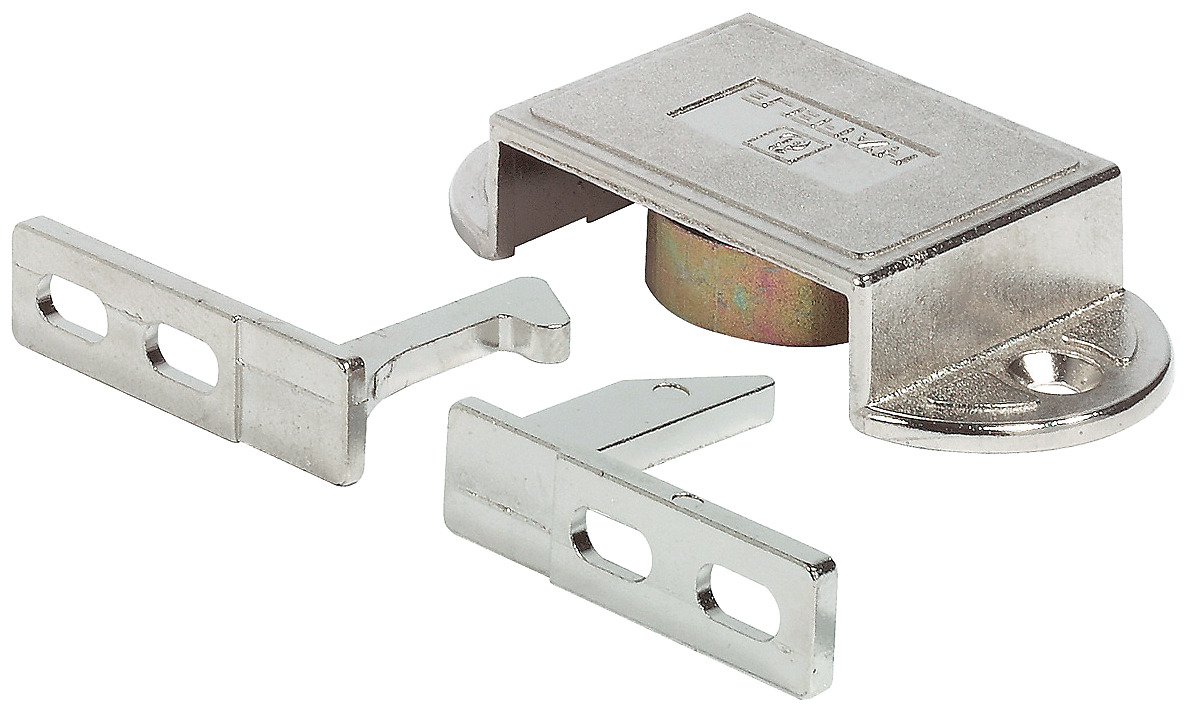

Hafele 245.58.754 Automatic Door Bolt, Zinc Die-Cast Nickel-plated

Product Information

• Description

  Manufacturer: Hafele
  Item: 245.58.754

  Product Title: Automatic Door Bolt, Zinc Die-Cast, Nickel-plated

  Category: Automatic Door Bolt, Zinc Die-Cast, Nickel-plated

  Item Details …

  - Lock double panel doors without additional stop strip or furniture bolts

  - The door catch is mounted inside the cabinet

  - The hook and wedge element are mounted to the inside of either the right or left door

  - The door with the hook element must be closed first

  - Upon closing the second door, the wedge element automatically blocks the door catch

  - The door with the edge element must be made lockable

  - Must be combined with either a cam or deadbolt lock

  - Functions best when chosen lock locks into cabinet top or bottom

  - Make sure that doors lock tight without too much ‘play’ and that tall doors do not offer too much flex

  - Color/finish : Nickel plated

  - For door width (inches) : Min. 16"

  - Material : Zinc Alloy

  - Installation : For screw fixing

  - Functionality : This automatic lock system for doors locks double doors without any additional stop strip or furniture bolt.The lock system is fitted inside the cabinet. The hook or wedge section is fitted on the inside of the right-hand or left-hand door.The door with a hook section must be closed first.The wedge section then locks into place with the automatic door lock when the second door is closed.The door with the wedge section fitted must now be fitted with a lock.


  Additional Information …

  Must be combined with either a cam or deadbolt lockFunctions best when chosen lock locks into the cabinet top or bottomMake sure that doors lock tight without too much ‘play’ and that tall doors do not offer too much flex

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Furniture_Cabinetry_Hardware_2022|Page 10.55



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_10.53-10.53.pdf

  Hafele 245.58.754, 245-58-754, 24558754, 245.58


  Specifications/Hafele Catalog - Page# FC10.55: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Lockers & Locking Systems Catalog Return to: All Hafele Catalogs
