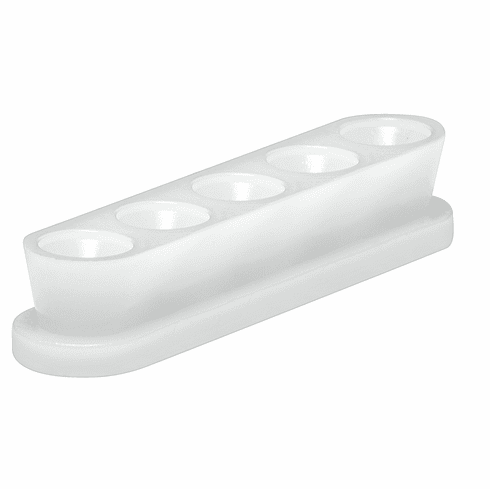

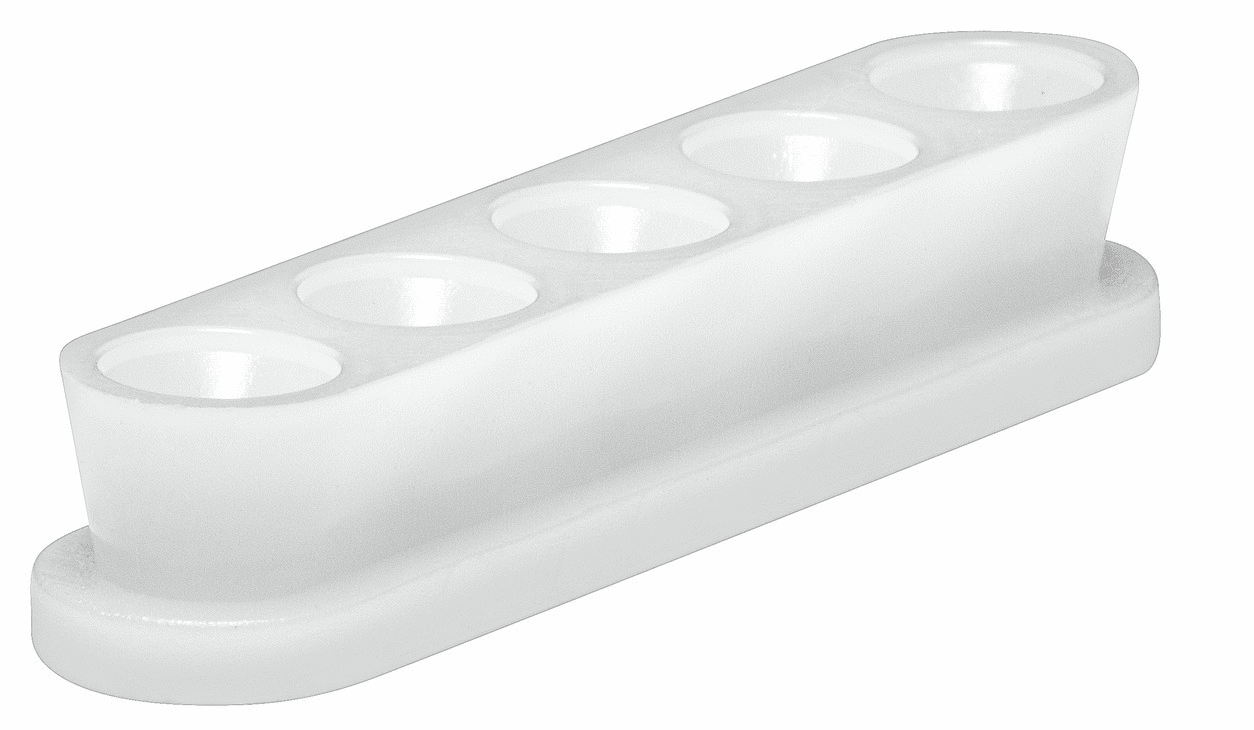

Dovetail Long Sleeve, plastic, white: Hafele part# 261.30.780

Product Information

• Description

  Manufacturer: Hafele
  Item: 261.30.780

  Product Title: Dovetail Connector, Long Sleeve for Screw Mounting, Plastic, white, without positioning dowel

  Category: Dovetail Connector, Long Sleeve for Screw Mounting, Plastic, white

  Item Details …

  - For concealed applications, not visible when installed

  - For solid, reinforcing connections

  - For retrospectively stabilizing high and bulging components

  - For installation without tools

  - New applications with biscuit jointer:

  - Miter-joint connector and double partition fitting for quick release connections

  - Long sleeve for stable shelf connections, even without rail

  - When used with rail:

  - For fixed, reinforced connections

  - For subsequent stabilization of high and bulging components

  - Color/finish : White

  - Length : 41.00 mm

  - Length (inch) : 1 3/4"

  - Area of application : Dovetail connector direct installation (with recessed mounting profile), Shelf connector for construction base panelsFor shelf and cabinet constructionsCan be used as double partition fitting and for miter joint connections

  - Suitable for : Direct dovetail connector (with milled fixing profile)

  - Material : Plastic

  - Installation : For screw fixing, for concealed installationDovetail connector: Installation and disassembly without tools

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Dovetail Connector Mounting Instructions

  TCH_Furniture_Cabinetry_Hardware_2022|Page 11.52A



• Required Products & Optional Accessories

  Optional Accessories:



  • Rail, with Dovetail Groove
  • Biscuit jointer with profile groove function, for dovetail connector, hard metal
  • Processing Aid Drilling Jig, With Countersink Cutter
  • Flat Head Screw, Hospa, countersunk head, PZ, fully threaded
  • Wood Screw, Flat Head Countersunk, Phillips Drive
