Hafele 262.09.202 Spreading Bolt, Minifix Drilling dimension B: 24 mm

Product Information

• Description

  Manufacturer: Hafele
  Item: 262.09.202

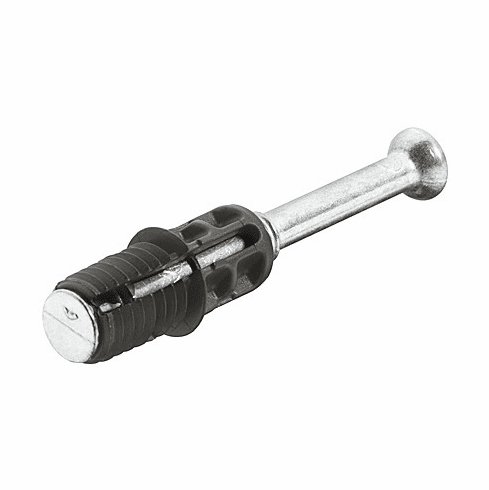

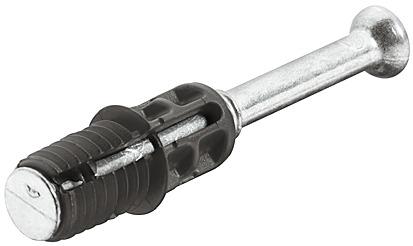

  Product Title: Spreading Bolt, Häfele Minifix® C100, for drill hole Ø 8 mm, Drilling dimension B: 24 mm

  Category: Spreading Bolt, Häfele Minifix® C100, for drill hole Ø 8 mm,

  Item Details …

  - For industry and joiners/cabinet makers.

  - Connecting bolt with universal use in the Minifix® connector system with special benefits:

  - extremely installation-friendly, no tools required

  - no surface damage caused by insertion and removal of spreading bolt

  - The bolt consists of a tapered metal pin with the typical Minifix® spherical head. This is embedded into a plastic spreading dowel. The top of the dowel is fitted with a stop and an easy-grip sheathing which makes manual insertion simple. The furniture components are drawn together ideally with a firm locking connection, as the stop ensures a uniform tensioned length of 34 mm. When the bolt is tightened with a Minifix® cam, the taper spreads the dowel, expanding the plastic spreading dowel in the hole. The greater the effect of the tightening forces, the more durable the connection. When dismantling the furniture, the bolt can be unscrewed again by hand.

  - Thread : Spreading sleeve

  - Thread length : 11.50 mm

  - For drill hole Ø : 8.00 mm

  - Color/finish : Black, chromated

  - Area of application : For one-sided installation

  - Material : Plastic, Zinc alloy

  - Bolt hole : 8.00 mm

  - For wood thickness : ?15 mm

  - Installation : Without tools

  - Functionality : When the connector is tightened, the double cone in the bolt expands the sleeve and pushes the threads into the wood. The stronger the tightening force, the stronger the connection.

  - Supplied with:

  - Set = 1 male and 1 female


  Additional Information …

  In the case of high pull out resistance requirements, tests are required on the project due to the different types of panels, wood types, constructions and tolerances.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Furniture_Cabinetry_Hardware_2022|Page 11.23



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_11.30-11.33.pdf

  Hafele 262.09.202, 262-09-202, 26209202, 262.09


  Specifications/Hafele Catalog - Page# FC11.35: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Connectors & Shelf Supports Catalog Return to: All Hafele Catalogs
