Hafele 262.09.313 Minifix Spreading Bolt, steel, B34, 10mm

Product Information

• Description

  Manufacturer: Hafele
  Item: 262.09.313

  Product Title: Spreading Bolt, C100, Minifix® System, for drill hole Ø 10 mm, In two parts, Drilling distance B: 34 mm

  Category: Spreading Bolt, C100, Minifix® System, for drill hole Ø 10 mm, In two parts

  Item Details …

  - For industry and joiners/cabinet makers.

  - Connecting bolt with universal use in the Minifix® connector system with special benefits:

  - extremely installation-friendly, no tools required

  - no surface damage caused by insertion and removal of spreading bolt

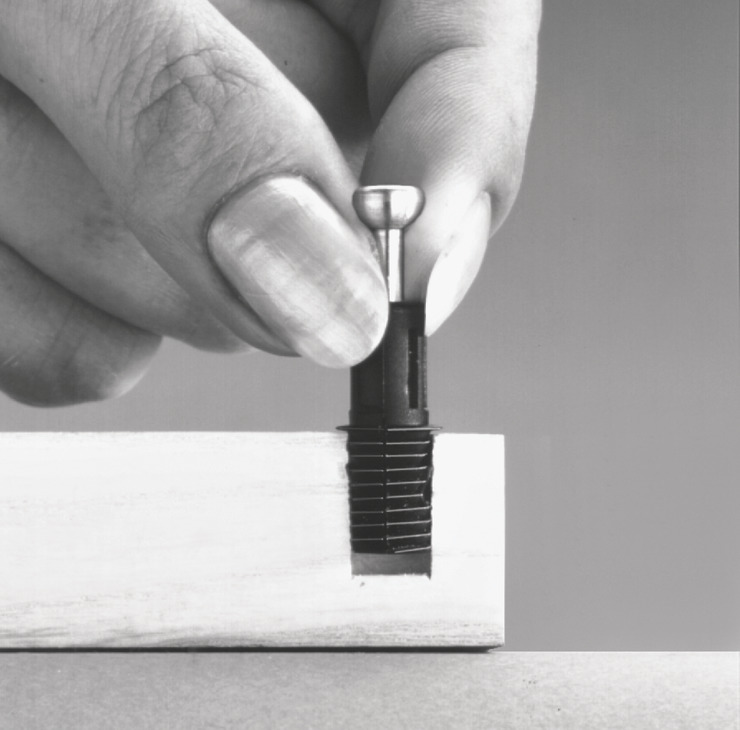

  - The bolt consists of a tapered metal pin with the typical Minifix® spherical head. This is embedded into a plastic spreading dowel. The top of the dowel is fitted with a stop and an easy-grip sheathing which makes manual insertion simple. The furniture components are drawn together ideally with a firm locking connection, as the stop ensures a uniform tensioned length of 34 mm. When the bolt is tightened with a Minifix® cam, the taper spreads the dowel, expanding the plastic spreading dowel in the hole. The greater the effect of the tightening forces, the more durable the connection. When dismantling the furniture, the bolt can be unscrewed again by hand.

  - Thread : Spreading sleeve

  - Thread length : 11.50 mm

  - For drill hole Ø : 10.00 mm

  - Color/finish : chromated

  - Area of application : For one-sided installation

  - Material : Plastic, Zinc alloy

  - Drive : PZ2 cross slot

  - For wood thickness : ?15 mm

  - Installation : Without tools


  Additional Information …

  In the case of high pull out resistance requirements, tests are required on the project due to the different types of panels, wood types, constructions and tolerances.
