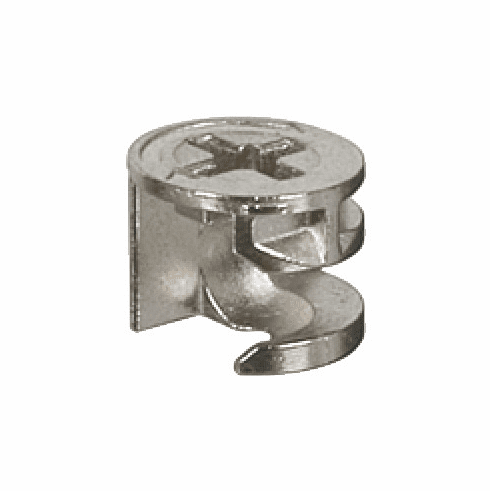

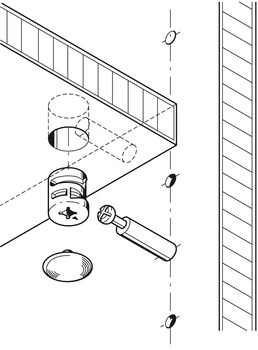

Hafele 262.17.020 Connector Housing, Minifix 12, zinc alloy, without rim Unfinished

Product Information

• Description

  Manufacturer: Hafele
  Item: 262.17.020

  Product Title: Connector Housing, Häfele Minifix 12, zinc alloy, without rim, Unfinished

  Category: Connector Housing, Häfele Minifix 12, zinc alloy, without rim,

  Item Details …

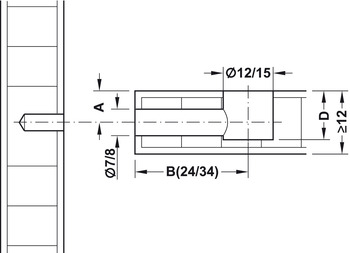

  - For wood thickness : ?12 mm

  - Drilling depth : 9.5 mm +0.2 mm

  - Dim. A : 6.00 mm

  - Drive : PZ2 cross slot, Flat blade

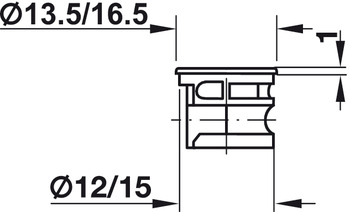

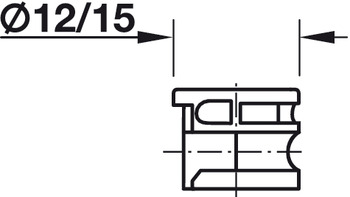

  - Drill hole Ø housing : 12.00 mm

  - Area of application : Can be locked only with a cross - slot screwdriver size 2

  - Material : Zinc alloy

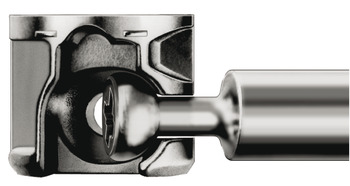

  - Suitable for : All connecting bolts from the Minifix® system


  Additional Information …

  Depending on the choice of connecting bolt, the bolt drill hole diameter is 5, 7 or 8 mm.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Furniture_Cabinetry_Hardware_2022|Page 11.20



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_11.29-11.29.pdf

  Hafele 262.17.020, 262-17-020, 26217020, 262.17


  Specifications/Hafele Catalog - Page# FC11.32: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Connectors & Shelf Supports Catalog Return to: All Hafele Catalogs
