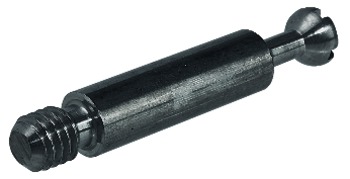

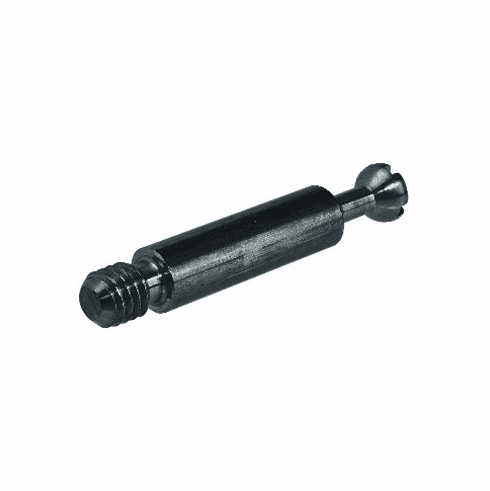

Hafele 262.28.946 Connecting Bolt, with M6 thread Bolt hole 8 mm, bolt head 7 mm, Drilling distance B: 34 mm, galvanized, thread length L: 7.5 mm

Product Information

• Description

  Manufacturer: Hafele
  Item: 262.28.946

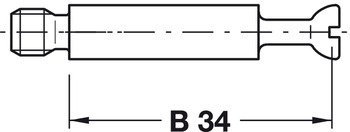

  Product Title: Connecting Bolt, Häfele Minifix® S100, with thread M6, Bolt hole 8 mm, bolt head Ø 7 mm, Drilling distance B: 34 mm, galvanized, thread length L: 7.5 mm

  Category: Connecting Bolt, Häfele Minifix® S100, with thread M6, Bolt hole 8 mm, bolt head Ø 7 mm

  Item Details …

  - Thread : M6

  - Thread length : 7.50 mm

  - Color/finish : Zinc plated

  - Material : Steel

  - Drive : PZ2 cross slot, Flat blade

  - Bolt hole : 8.00 mm

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Furniture_Cabinetry_Hardware_2022|Page 11.21



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_11.30-11.33.pdf

  Hafele 262.28.946, 262-28-946, 26228946, 262.28


  Specifications/Hafele Catalog - Page# FC11.33: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Connectors & Shelf Supports Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Required Products & Optional Accessories

  Optional Accessories:



  • Connector Housing, Häfele Minifix® 15, zinc alloy, without rim
  • Connector Housing, Häfele Minifix 12, zinc alloy, without rim
  • Spreading Dowel, Brass, M6
  • Spreading Dowel, Nylon, M6
  • Glue-in sleeve, Plastic (polyamide)
