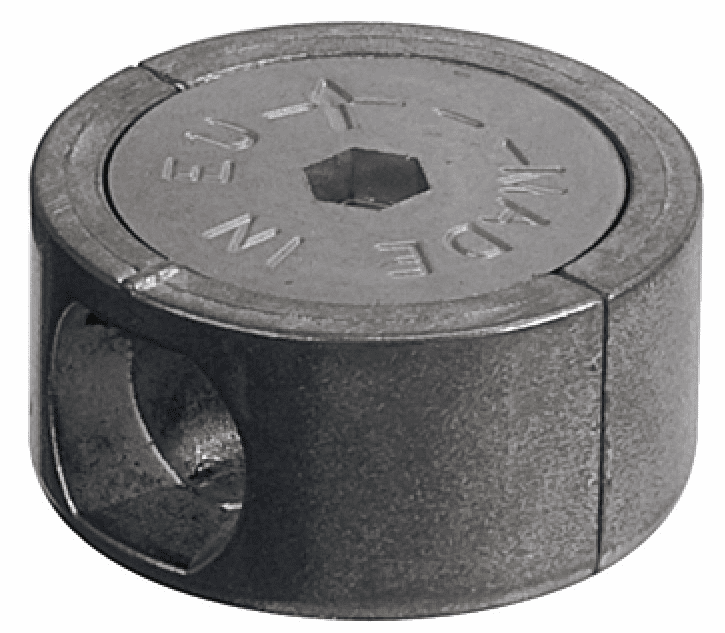

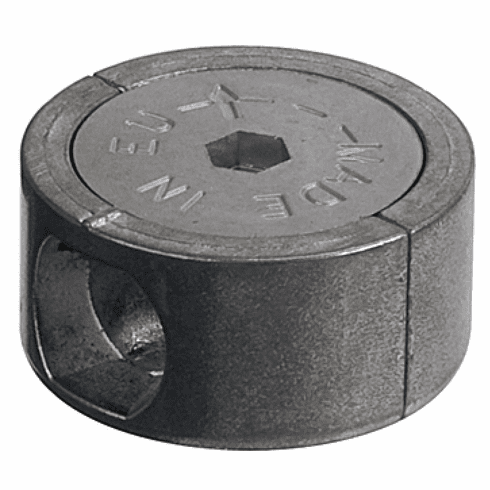

Hafele 262.69.009 Recessed Universal Connector, Confa 35 Ixconnect, Wood thickness 24 mm

Product Information

• Description

  Manufacturer: Hafele
  Item: 262.69.009

  Product Title: Recessed Universal Connector, Confa 35, Ixconnect, Wood thickness 24 mm

  Category: Recessed Universal Connector, Confa 35, Ixconnect, Wood thickness 24 mm

  Item Details …

  - Quickly tightened

  - Can be tightened with 6 mm hex key

  - A cordless drill can be used for quick assembly

  - For very sturdy and heavily loaded joints

  - Long travel distance

  - Quickly tightened

  - Can be tightened with 6 mm hex key

  - Even a cordless drill can be used for quick assembly

  - For wood thickness : ?24 mm

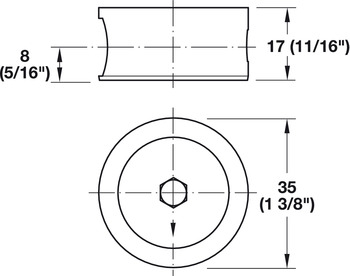

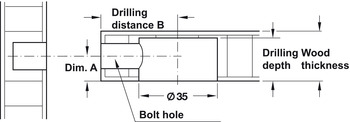

  - Drill hole Ø housing : 35.00 mm

  - Color/finish : Black

  - Area of application : For extremely stable connections that are subjected to heavy loads

  - Material : Zinc alloy

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Furniture_Cabinetry_Hardware_2022|Page 11.41



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_11.43-11.43.pdf

  Hafele 262.69.009, 262-69-009, 26269009, 262.69


  Specifications/Hafele Catalog - Page# FC11.45: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Connectors & Shelf Supports Catalog Return to: All Hafele Catalogs
