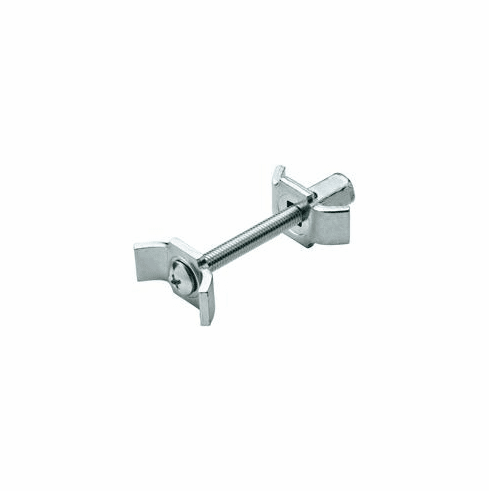

Hafele 262.96.211 Worktop Connector, Recessed Bolt Length: 65 mm, Drilling Dimension B: 32 - 41 mm

Product Information

• Description

  Manufacturer: Hafele
  Item: 262.96.211

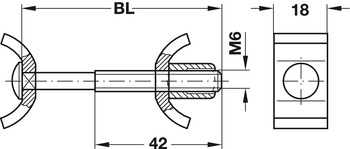

  Product Title: Worktop Connector, Recessed, Bolt Length: 65 mm, Drilling Dimension B: 32 - 41 mm

  Category: Worktop Connector, Recessed,

  Item Details …

  - Allows work surfaces to be connected rapidly and securely

  - The semi-circular fastening elements are pressed against the recess walls as tension is applied

  - Material : Steel

  - Color/finish : Zinc plated, Zinc-plated

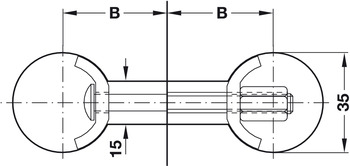

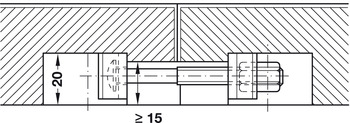

  - Installation : For recess mounting in 35 mm drillingDrilling dim. 32–41 mm with bolt length 65 mmDrilling dim. 75–84 mm with bolt length 150 mm

  - Installation reference : Insert connector into worktops and tighten with hexagon key.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Furniture_Cabinetry_Hardware_2022|Page 11.81



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_11.52-11.53.pdf

  Hafele 262.96.211, 262-96-211, 26296211, 262.96


  Specifications/Hafele Catalog - Page# FC11.56: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Connectors & Shelf Supports Catalog Return to: All Hafele Catalogs
