Hafele 263.09.132 Connector Housing, Rafix Tab 20 System Brown

Product Information

• Description

  Manufacturer: Hafele
  Item: 263.09.132

  Product Title: Connector Housing, Rafix Tab 20 System, Brown; 19mm

  Category: Connector Housing, Rafix Tab 20 System,

  Item Details …

  - For installation without tools using the Rafix 20 system:

  - The housing is simply slid onto the bolt

  - the angled tightening position ensures that the bolt is extremely tight

  - integrated lip prevents the shelf from "moving"

  - Rafix 20 TAB is a continuation of the Rafix design line for shelf connections.

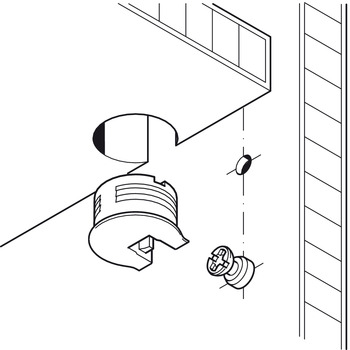

  - The housing is pressed into the shelf and pushed onto connecting bolt

  - A cost effective method for creating a positive engagement shelf support

  - Uses standard Rafix machining while allowing for a tool-less connection

  - Without tightening element

  - Dim. A : 8.00 mm

  - Drilling depth : 12.7 mm

  - Drill hole Ø housing : 20.00 mm

  - Area of application : Shelf connector

  - Version : with rim, with ridge, Without tightening element

  - Material : Plastic

  - Installation : Without tools


  Additional Information …

  Additional Rafix connectors are required for high components in order to prevent "bulging".The colours shown are similar to RAL colours and are as close as possible to the actual standard colours. The colour shades may vary slightly due to production reasons.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 11.8



• Required Products & Optional Accessories

  Optional Accessories:



  • Connecting Bolt, Rafix S20
  • Double-Ended Bolts, Rafix 20, 5 mm Bolt Hole, 2-Piece
  • Drilling Jig, Basic, Red
