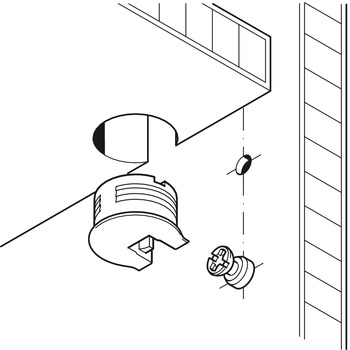

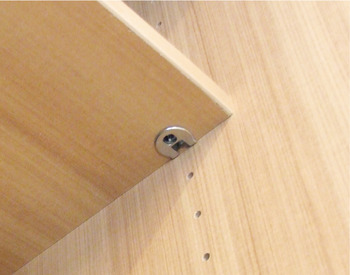

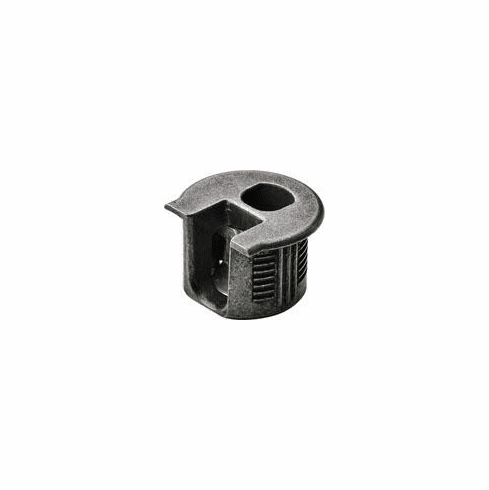

Hafele 263.11.105 Connector Housing, Rafix 20 System, without Ridge, Zinc with tightening element, For wood thickness 19 mm, bronzed

Product Information

• Description

  Manufacturer: Hafele
  Item: 263.11.105

  Product Title: Connector Housing, Rafix 20 System, without Ridge, Zinc, with Tightening Element, For wood thickness 19 mm, bronzed

  Category: Connector Housing, Rafix 20 system, zinc alloy, with Tightening Element

  Item Details …

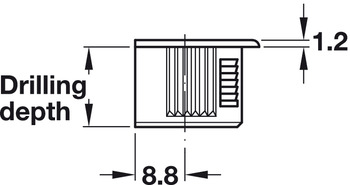

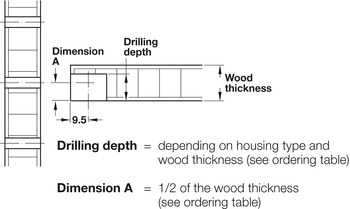

  - Drill hole Ø housing : 20.00 mm

  - Version : with rim, with tightening element, without ridge, without dowel

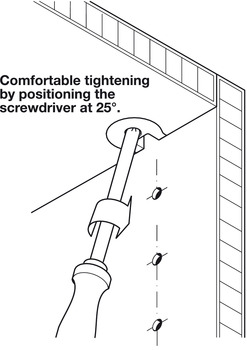

  - Drive : PZ2 cross slot

  - Material : Zinc alloy, Tightening element: Zinc alloy

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  LGA quality certificate 1012 for Minifix, Maxifix, Rafix, TAB-V furniture connectors

  TCH_Furniture_Cabinetry_Hardware_2022| Page 11.5



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_11.19-11.19.pdf

  Hafele 263.11.105, 263-11-105, 26311105, 263.11


  Specifications/Hafele Catalog - Page# FC11.20: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Connectors & Shelf Supports Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Required Products & Optional Accessories

  Optional Accessories:



  • Double-Ended Bolts, Rafix 20, 5 mm Bolt Hole, 2-Piece
  • Connecting Bolt, Rafix S20
  • Drilling Jig, Basic, Red
