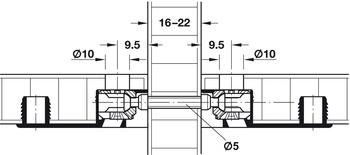

Hafele 263.24.943 Double-Ended Bolts, Rafix 20, 5 mm Bolt Hole, 2-Piece Side panel thickness: 16-22 mm, zinc-plated

Product Information

• Description

  Manufacturer: Hafele
  Item: 263.24.943

  Product Title: Double-Ended Bolts, Rafix 20, 5 mm Bolt Hole, 2-Piece, For screwing together, Side panel thickness: 16-22 mm, zinc-plated

  Category: Double-Ended Bolts, Rafix 20, 5 mm Bolt Hole, 2-Piece, For screwing together

  Item Details …

  - Area of application : For double-sided installation

  - Material : Steel

  - Bolt hole : 5.00 mm

  - Drive : PZ2 cross slot, Flat blade

  - Installation : 2-pieceFor screw fixing and then tightening with housing


  Additional Information …

  Individual replacement components are available. There is a lead time with a minimum order quantity.Bolt (male): 263.24.845Sleeve (female): 263.24.836

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Furniture_Cabinetry_Hardware_2022|Page 11.15



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_11.22-11.25.pdf

  Hafele 263.24.943, 263-24-943, 26324943, 263.24


  Specifications/Hafele Catalog - Page# FC11.28: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Connectors & Shelf Supports Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Required Products & Optional Accessories

  Optional Accessories:



  • Drilling Jig, Basic, Red
