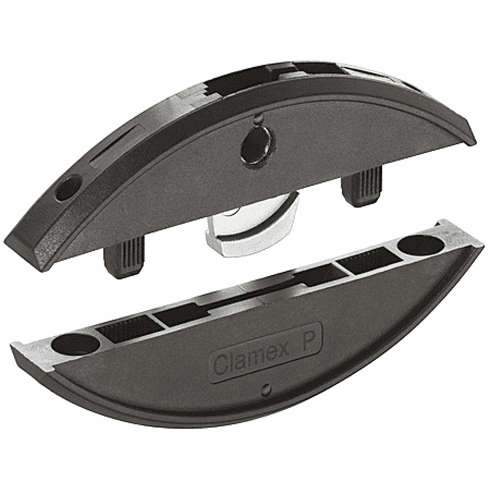

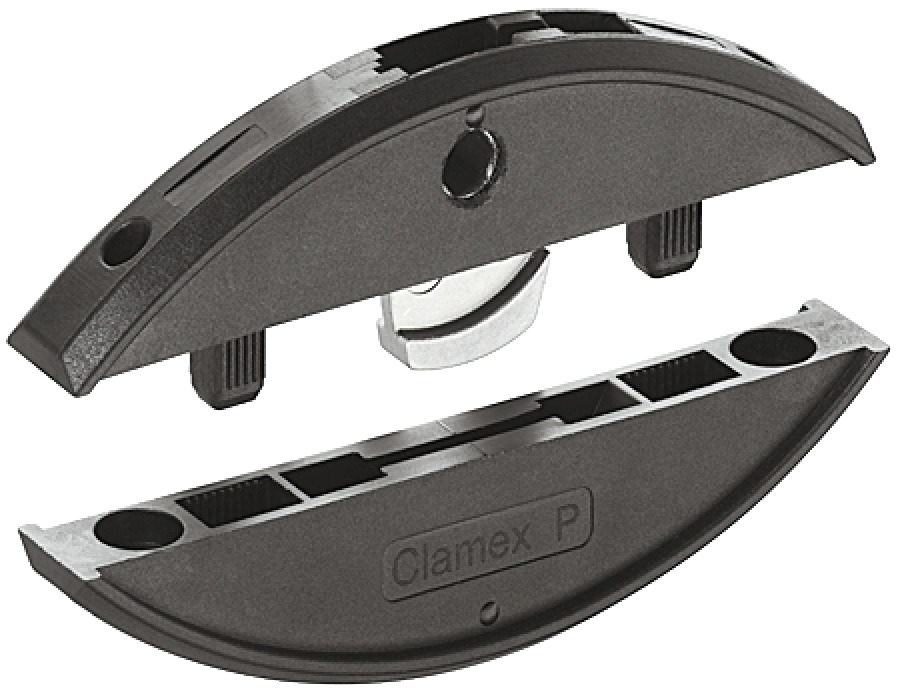

Hafele 267.91.166 Cabinet Connector, Lamello Clamex P-14 Packing: 1000 pcs

Product Information

• Description

  Manufacturer: Hafele
  Item: 267.91.166

  Product Title: Cabinet Connector, Lamello Clamex P-14, Packing: 1000 pcs

  Category: Cabinet Connector, Lamello Clamex P-14/10,

  Item Details …

  - The three top reason to use Clamex P-14 as a standard connector:

  - 1. Nearly invisible, secure connections

  - 2. Process advantages in production, transport and assembly

  - 3. One connector for all connection applications and angles

  - Quick and tool-less installation

  - Connector can be removed and retightened as necessary

  - The tensioning element makes high force transfer possible

  - Laterally adjustable

  - Area of application : For corner, center panel and surface connections, and mitre connections from 30° – 180°For solid wood and board material

  - Material : Plastic

  - Deadbolt material : Zinc alloy

  - Color/finish : Black

  - Drive : Hexagon socket SW4

  - Adjustment facility : Lengthways ±1.5 mm

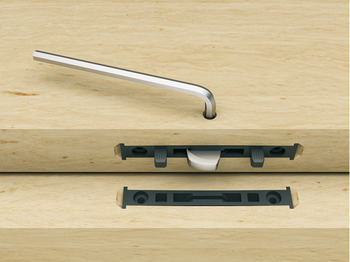

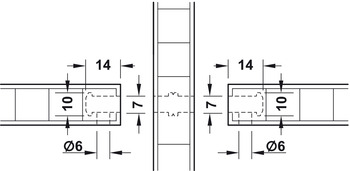

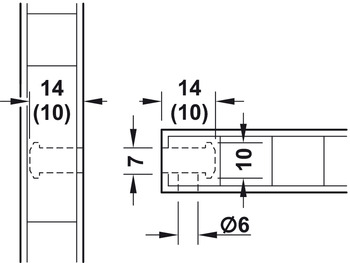

  - Installation description : mill 7 mm groove with T-slot for connectorDrill 6 mm opening for tightening element and slide in the connectorJoin workpieces and tighten with SW4 hex wrench

  - Order reference

  - 1 piece = 1 pair


  Additional Information …

  Join wood using Zeta P2 power tool: depth setting 14

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Lamello Clamex P Detachable Joinery and Clamping System

  TCH_Furniture_Cabinetry_Hardware_2022|Page 11.57



• Required Products & Optional Accessories

  Optional Accessories:



  • Biscuit Joiner, Zeta P2
  • Drilling Jig, Clamex P-System
  • Lamello Alignment Biscuit, Bisco, plastic
  • Bit Holder with Handle, With flexible shaft and 1/4 bit holder
  • Cover Cap, for push fitting into blind hole
  • Blades for Biscuit Joiner, for Lamello P system

• Videos

  Play: Lamello Lessons - Introduction to Clamex P-14
  Play: Lamello Clamex P Detachable Joinery and Clamping System Installed with CNC and Zeta P2
  Play: Clamex P 14 Non mitred joint
  Play: Clamex P 14 Dividers with CNC
  Play: Clamex P 14- 90 degrees
  Play: Clamex P-14 - 45 Mitre Joint
  Play: Clamex P System and CNC Router
  Play: How to clamp an outside crown molding miter using Lamello Clamex
