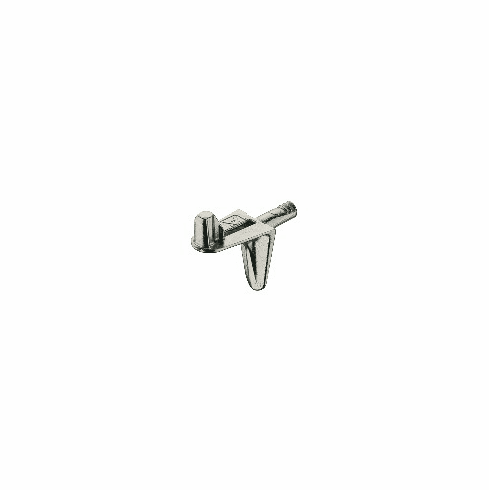

Hafele 282.25.727 Shelf Support Load bearing capacity: (110 lbs.) 50 kg, Nickel-plated

Product Information

• Description

  Manufacturer: Hafele
  Item: 282.25.727

  Product Title: Shelf Support, for wooden shelves, zinc alloy, load bearing capacity 6.25 kg per item, Load bearing capacity: (110 lbs.) 50 kg, Nickel-plated

  Category: Shelf Support, for wooden shelves, zinc alloy, load bearing capacity 6.25 kg per item, Load bearing capacity: (110 lbs.) 50 kg, Nickel-plated

  Item Details …

  - Patented design assures minimum lowering of shelf under heavy weight

  - With three wedged ribs and shelf fixing plug

  - Area of application : for wooden shelves

  - Color/finish : nickel plated

  - Installation : For insert fitting

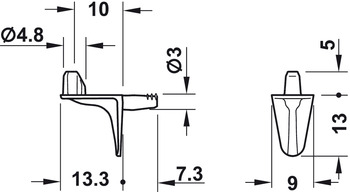

  - For drill hole Ø : 3.00 mm

  - Distance fixing lug : 10.00 mm

  - Pin length : 7.30 mm

  - Version : with fixing lug as shelf security feature

  - Material : Zinc alloy

  - Load bearing capacity per item : 6.25 kg

  - Load bearing capacity with 4 shelf supports : 25.00 kg

  - Load bearing capacity : 55 lbs

  - Note on load bearing capacity : Load bearing capacity per item, tested in accordance with DIN EN 16337:2013-08 with 1.7 kg plate for impact test, i.e. 25 kg load bearing capacity when using 4 shelf supports

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Furniture_Cabinetry_Hardware_2022|Page 11.111



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_11.68-11.76.pdf
