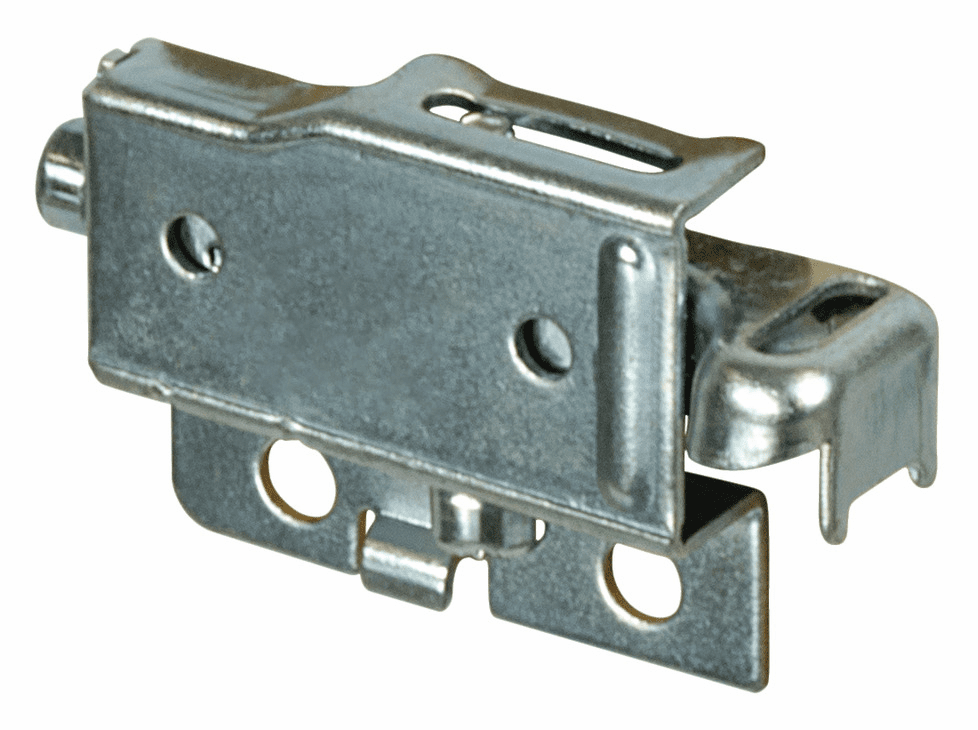

Hafele 290.02.731 Cabinet Hanger, for euro screw, steel, galvanized, left hand

Product Information

• Description

  Manufacturer: Hafele
  Item: 290.02.731

  Product Title: Cabinet Hanger, Screw-Mounted, Visible inside the cabinet, Left Hand, For use with Euro Screw 013.02.904

  Category: Cabinet Hanger, Screw-Mounted, Visible inside the cabinet

  Item Details …

  - The screwdriver can be inclined by ± 15° which allows comfortable adjustment of the screws

  - Installation : Mounts with Euro Screw 013.02.913

  - Color/finish : Zinc plated

  - Version : Includes three gussets for added strength

  - Area of application : For hanging cabinets or closets

  - Load bearing capacity : 45.00 kg

  - Load bearing capacity : 286 lbs/pair

  - Load bearing capacity per pair : 90.00 kg

  - Material : Steel

  - Installation reference : Only use hand screwdriver for adjustment.

  - Standard : .

  - Adjustment facility : Side adjustment: <5 mm, Height adjustment: 13?–?16 mm, Depth adjustment facility: 17?–?14 mm, Vertical 16 mm (5/8"); Depth 14 mm (9/16")

  - Further adjustment facility : Vertical 16 mm (5/8"); Depth 14 mm (9/16")

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 4.152A



• Required Products & Optional Accessories

  Optional Accessories:



  • Cover Cap, Clip on, For cabinet hanger for wall unit
  • Euro Screw, Pan Head, Pozi
