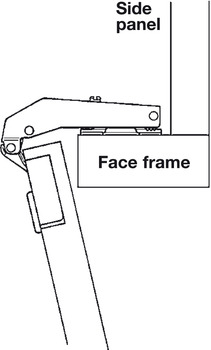

Hafele 315.01.740 Blind Corner Clip-On Hinge, Opening Angle 92 degree, Inset Overlay Soft-close

Product Information

• Description

  Manufacturer: Hafele
  Item: 315.01.740

  Product Title: Blind Corner Clip-On Hinge, Opening Angle 92°, Inset Overlay, Soft-close

  Category: Blind Corner Clip-On Hinge, Opening Angle 92°, Inset Overlay,

  Item Details …

  - Crank type : Straight

  - Material : Steel

  - Opening angle : 92°

  - Cup drilling depth : 11.50 mm

  - Cup drilling Ø : 35.00 mm

  - Drilling pattern : 45/9.5

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 9.68



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_9.62-9.62.pdf

  Hafele 315.01.740, 315-01-740, 31501740, 315.01


  Specifications/Hafele Catalog - Page# FC9.60: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Hinges & Stays Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Required Products & Optional Accessories

  Optional Accessories:



  • Mounting Plate, Flanged, for Clip-On Hinges
  • Mounting Plate, Face Frame, for Clip-On Hinges
