Hafele 315.03.511 Hinge Clip-on, 110 degree, half, overlay, self-closing, dowel, steel, nickel-plated, Mod 4

Product Information

• Description

  Manufacturer: Hafele
  Item: 315.03.511

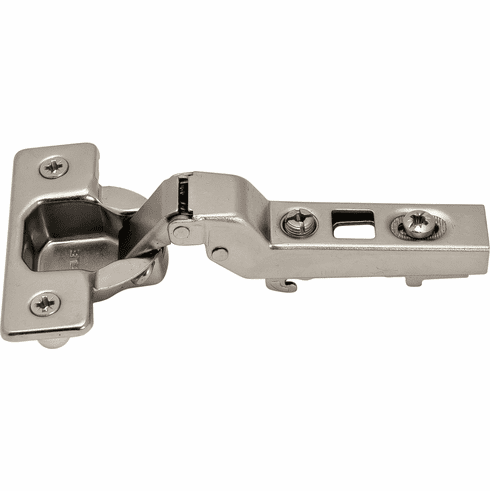

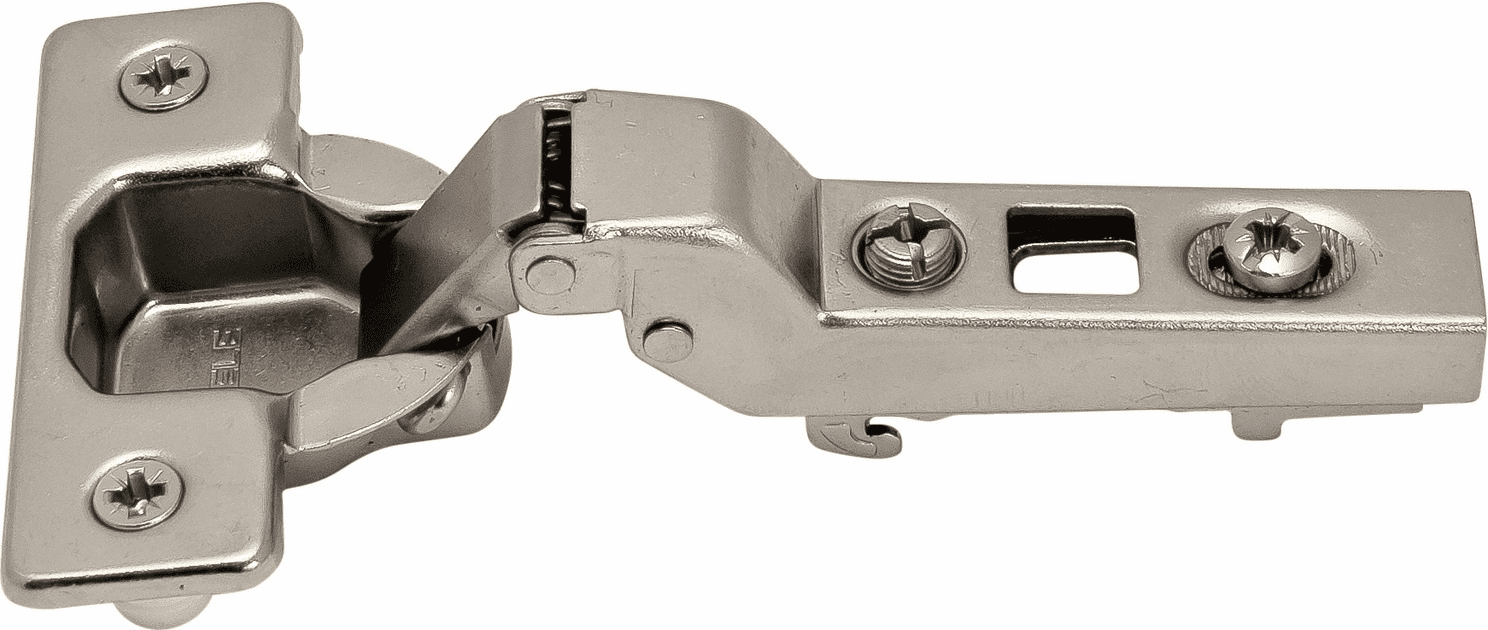

  Product Title: Clip-On Hinge, Opening Angle 110°, Half Overlay, Self-Close

  Category: Clip-On Hinge, Opening Angle 110°, Half Overlay,

  Item Details …

  - Concealed hinge version : half overlay

  - Crank type : Cranked

  - Door processing for assembly : with cup drilling

  - Material : Steel

  - Opening angle : 110°

  - Cup drilling depth : 11.50 mm

  - Cup drilling Ø : 35.00 mm

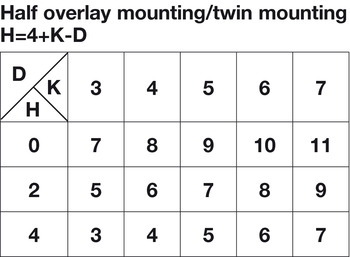

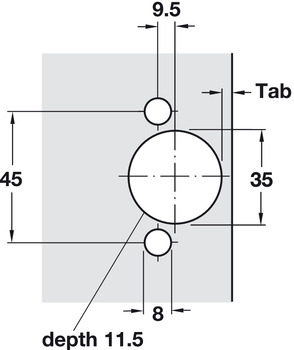

  - Drilling pattern : 45/9.5

• Data Sheet

  Detailed Data Sheet

• Product Resources

  Hafele A-series Soft Close Hinge Test Report

  TCH_Furniture_Cabinetry_Hardware_2022|Page 9.66



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_9.60-9.60.pdf

  Hafele 315.03.511, 315-03-511, 31503511, 315.03


  Specifications/Hafele Catalog - Page# FC9.58: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Hinges & Stays Catalog Return to: All Hafele Catalogs
