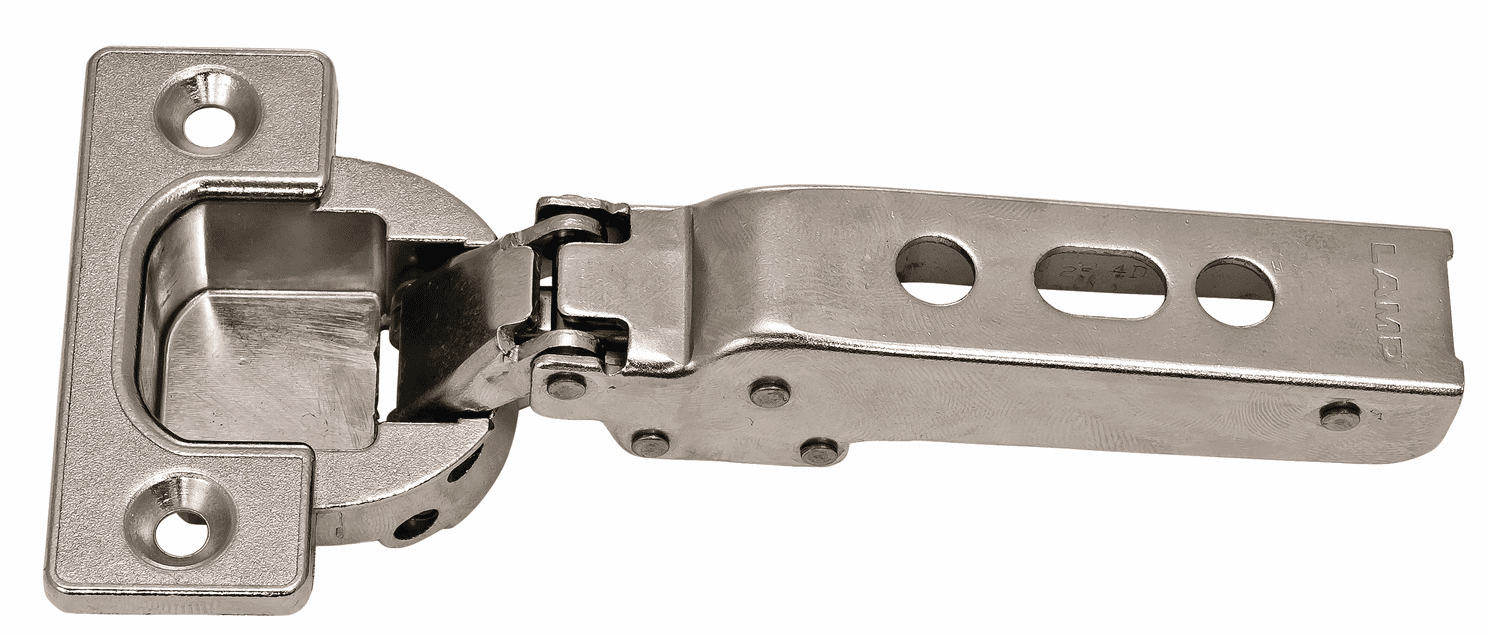

Hafele 327.21.521 Concealed Hinge, heavy duty, 16mm overlay, screw mounting, self closing, steel, nickel plated

Product Information

• Description

  Manufacturer: Hafele
  Item: 327.21.521

  Product Title: Concealed Hinge, Sugatsune J95, Heavy-Duty, Full Overlay, Screw-mount, Nickel-plated

  Category: Concealed Hinge, Sugatsune J95, Heavy-Duty, Full Overlay, Screw-mount, Nickel-plated

  Item Details …

  - Area of application : Thick, heavy doors

  - Material : Steel

  - Opening angle : 90°

  - Cup drilling Ø : 40.00 mm

  - Adjustment facility : Side adjustment 0?–?-4 mm, Height adjustment ±3 mm, Depth adjustment -2.5?–?1.5 mm

  - Installation height : 3/4 - 1"


  Additional Information …

  If door is over 30 mm (1 3/16”) thick, the frame must be chamfered. Requires 6 #10 screws per hinge and plate (015.80.105).
