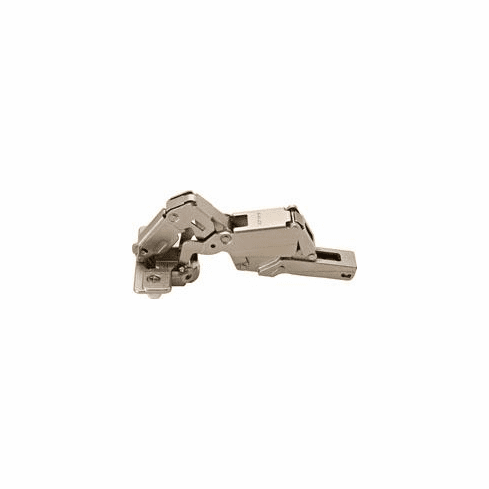

Hafele 329.07.654 Concealed Hinge, Duomatic 165 degree, full overlay mounting or Wooden Doors up to 26 mm,, dowel mounting, model C2RFA99

Product Information

• Description

  Manufacturer: Hafele
  Item: 329.07.654

  Product Title: Concealed Hinge, Salice 200 Series, 165°, full overlay mounting, or Wooden Doors up to 26 mm, dowel mounting, model C2RFA99

  Category: Concealed Hinge, Salice 200 Series, 165°, full overlay mounting, or Wooden Doors up to 26 mm

  Item Details …

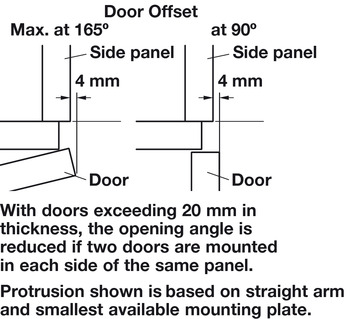

  - Zero offset for use with internal pull outs or extending trays

  - Area of application : For wood doors

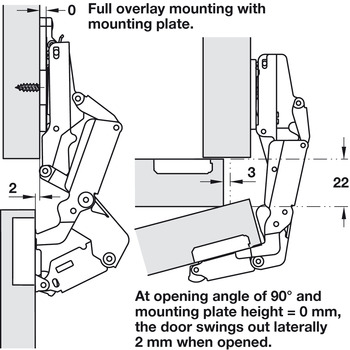

  - Concealed hinge version : full overlay

  - Crank type : Straight

  - For door material : wood

  - Door processing for assembly : with cup drilling

  - Material : Cup: Zinc alloy, Hinge arm: Steel

  - Color/finish : nickel plated

  - Opening angle : 165°

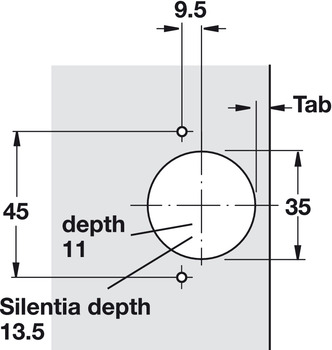

  - Cup drilling depth : 11.00 mm

  - Cup drilling Ø : 35.00 mm

  - Drilling pattern : 45/9.5

  - Adjustment facility : Side adjustment -1.5?–?4.5 mm, Height adjustment ±2 mm, Depth adjustment with Metalla 510 A mounting plates +2.8 mm, with Metalla 510 SM mounting plates from -0.5 to +2.8 mm

  - Installation : Door on cabinet with slide-on system A or quick fixing system SM

  - Order reference

  - Mounting plate sold separately.


  Additional Information …

  Drilling pattern 45/9.5 available by request.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Furniture_Cabinetry_Hardware_2022|Page 9.23



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_9.24-9.24.pdf

  Hafele 329.07.654, 329-07-654, 32907654, 329.07


  Specifications/Hafele Catalog - Page# FC9.27: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Hinges & Stays Catalog Return to: All Hafele Catalogs
