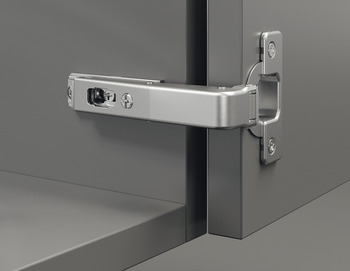

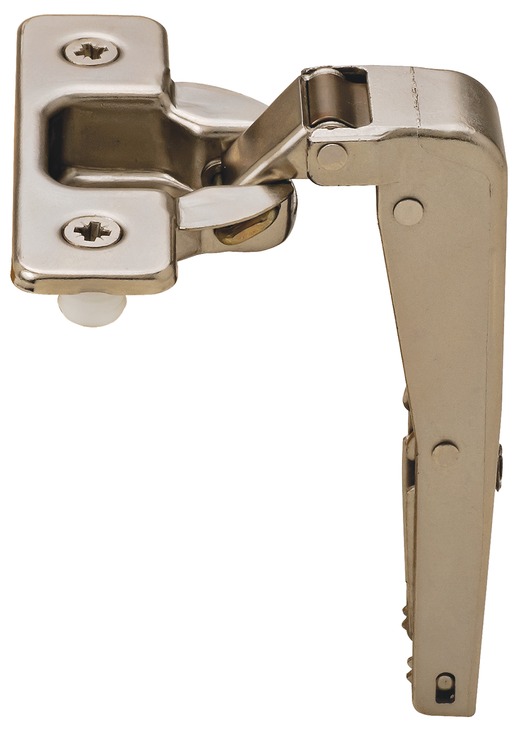

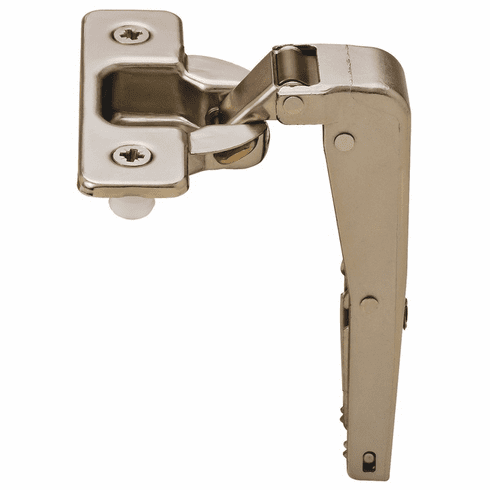

Hafele 329.11.506 Blind Corner Concealed Hinge, Salice, 94 degree Opening Angle, Self Close, Inset Mounting, Nickel-Plated Special Application, Screw-on, model C2PBN99AC

Product Information

• Description

  Manufacturer: Hafele
  Item: 329.11.506

  Product Title: Blind Corner Concealed Hinge, Salice, 94° Opening Angle, Self Close, Inset Mounting, Nickel-Plated, Special Application, Screw-on, model C2PBN99AC

  Category: Blind Corner Concealed Hinge, Salice, 94° Opening Angle, Self Close, Inset Mounting, Nickel-Plated, Special Application

  Item Details …

  - Area of application : Blind corner

  - Version : With automatic closing spring

  - Concealed hinge version : blind corner application

  - Crank type :

  - For door material : wood

  - Door processing for assembly : with cup drilling

  - Material : Cup: Steel, Hinge arm: Zinc alloy

  - Color/finish : nickel plated

  - Opening angle : 94°

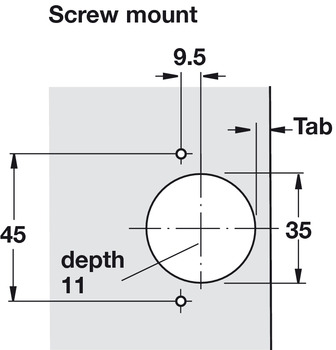

  - Cup drilling depth : 11.00 mm

  - Cup drilling Ø : 35.00 mm

  - Cup fixing : for screw fixing

  - Drilling pattern : 45/9.5

  - Adjustment facility : Side adjustment <4.5 mm, Height adjustment ±2 mm, Depth adjustment with Metalla 510 A mounting plates +2.8 mm, with Metalla 510 SM mounting plates from -0.5 to +2.8 mm

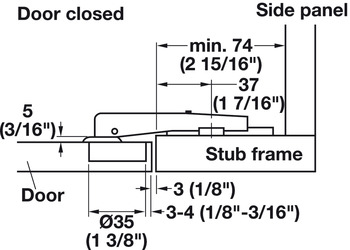

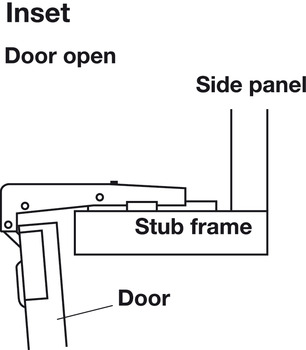

  - Installation : Door on cabinet with slide-on system A or quick fixing system SM

  - Order reference

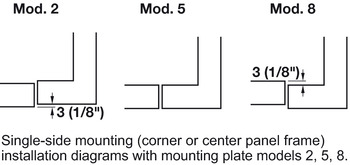

  - suitable for all Metalla 510 A and Metalla 510 SM mounting plates


  Additional Information …

  suitable for all Metalla 510 A and Metalla 510 SM mounting plates

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Furniture_Cabinetry_Hardware_2022|Page 9.26



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_9.25-9.29.pdf

  Hafele 329.11.506, 329-11-506, 32911506, 329.11


  Specifications/Hafele Catalog - Page# FC9.33: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Hinges & Stays Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Required Products & Optional Accessories

  Optional Accessories:



  • Blind Corner Concealed Hinge, Salice, 110° Opening Angle, Nickel-Plated
  • Concealed Hinge, Salice PUSH, 110° Opening Angle, Self Opening, Full Overlay
  • Cover Cap for Hinge Arm, for Salice concealed hinges
  • Flange Cover Cap, for Salice concealed hinges
  • Flat Head Screw, Hospa, countersunk head, PZ, fully threaded
