Hafele 329.71.517 Aluminum Frame Wing Mounting Plate, Salice, Without Pre-Installed Euro Screws

Product Information

• Description

  Manufacturer: Hafele
  Item: 329.71.517

  Product Title: Aluminum Frame Wing Mounting Plate, Salice, Without Pre-Installed Euro Screws, quick fixing system, pre-mounted Euro screws, depth adjustable via eccentric

  Category: Aluminum Frame Wing Mounting Plate, Salice, Without Pre-Installed Euro Screws, quick fixing system, pre-mounted Euro screws, depth adjustable via eccentric

  Item Details …

  - Automatic Adjustment Response feature: a slight turn of the depth adjustment cam or vertical cam quickly positions hinge – eliminating need for manual positioning by loosening screws.

  - Area of application : For Häfele Metalla 510 concealed hinges

  - Version : with quick fixing system and eccentric adjustment

  - Material : Zinc alloy

  - For drill hole Ø : 2.00 mm

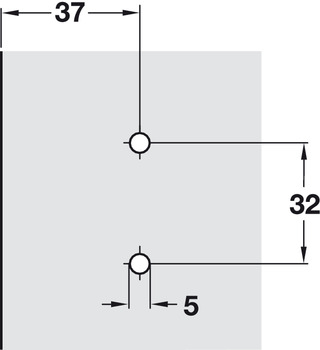

  - Screw distance : 32.00 mm

  - Edge distance : 37.00 mm

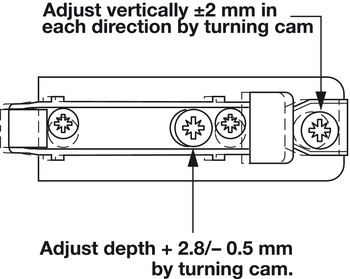

  - Adjustment facility : Height adjustment Via eccentric ±2 mm, Depth adjustment Via eccentric -0.5 mm to +2.8 mm

  - Fixing method : Quick fixing system SM

  - Mounting plate version : for screw fixing with chipboard screws

  - Manufacturer : Häfele

• Data Sheet

  Detailed Data Sheet

• Specifications

  Hafele 329.71.517 Salice Bargry9/29 Clip Mpl 24Mm Pre/11Mm St Nip Mod 26 (6X5X2.5 Cm) - 150 Pcs


  Product Specifications:
  Contact us for more information.

• Required Products & Optional Accessories

  Optional Accessories:



  • Mounting Plate, Salice, With Pre-Installed Euro Screws
  • Flat Head Screw, Hospa, countersunk head, PZ, fully threaded
