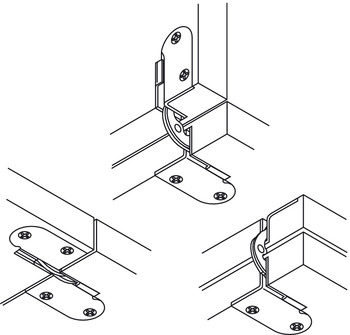

Hafele 341.30.526 Folding Table Hinge, Recessed For panel thickness: 22 mm

Product Information

• Description

  Manufacturer: Hafele
  Item: 341.30.526

  Product Title: Folding Table Hinge, Recessed, Recess-mounted, For panel thickness: 22 mm

  Category: Folding Table Hinge, Recessed, Recess-mounted

  Item Details …

  - Length (inch) : 3 15/16"

  - Installation depth min. (inches) : 3/4"

  - Area of application : as individual component ? for folding fitting for tables with frame

  - Material : Steel

  - Installation reference : With panel thickness of 16 mm, provided 2 mm plates must be installed underneath.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 9.94



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_9.85-9.89.pdf

  Hafele 341.30.526, 341-30-526, 34130526, 341.30


  Specifications/Hafele Catalog - Page# FC6.90: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Table, Legs, Casters Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Required Products & Optional Accessories

  Optional Accessories:



  • Flat Head Screw, Hospa, countersunk head, PZ, fully threaded
  • Peg and Sleeve Connector, Steel
  • Zip-R Screw, Flat Countersunk Head, #2 Phillips, with Nibs
  • Zip-R Screw, Flat Countersunk Head, #2 Phillips Drive
  • Zip-R Screw, Flat Countersunk Head, #2 Square Drive, with Nibs
  • Zip-R Screw, Flat Countersunk Head, #2 Square Drive
  • Spax® Screw, Flat Countersunk Head with Uni-Drive, Zinc-Plated
