Hafele 344.06.902 Single Pivot Institutional Hinge Arm, Aximat 300, Grade 1, with Expanding Dowels Matt nickel, twin overlay, 180 degree opening angle
, 34406902, 344-06-902 "Pin It")
Product Information
Description
Manufacturer: Hafele
Item: 344.06.902
Product Title: Single Pivot Institutional Hinge Arm, Aximat® 300, Grade 1, with Expanding Dowels, Aximat® 300, Matt nickel, twin overlay, 180° opening angle
Category: Single Pivot Institutional Hinge Arm, Aximat® 300, Grade 1, with Expanding Dowels, Aximat® 300
Item Details …
- Hinge arm component available with pre-installed expanding dowels for 5 mm holes, or for screw attachment
- Hinge cup component available in screw-mount or dowel-mount
- Arm and cup clip-together, no tools required
- Sleek sophisticated design, only 5 mm (3/16”) of knuckle is visible
- Integrated catch keeps doors closed, no additional magnetic catches required
- #6 wood screws for hinge attachment are not included
- Tested in accordance with ANSI/BHMA Grade 1 standards
- Area of application : For single cabinets and storage walls
- Door processing for assembly : without
- Material : Zinc alloy
- Side panel thickness : ?19 mm

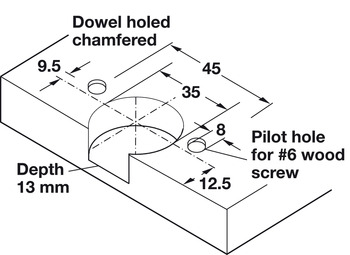

- Cup drilling depth : 13.00 mm
- Cup drilling Ř : 35.00 mm
- Installation : With pre-mounted expanding dowels for 5mm holes
- Order reference
- #6 wood screws for hinge attachment are not included
Additional Information …

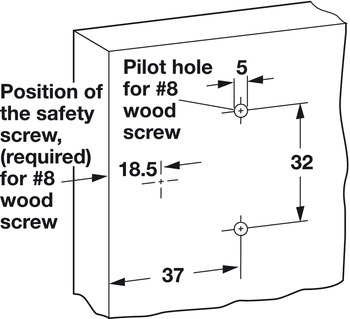

Installation of safety screw in arm is required.Data Sheet
