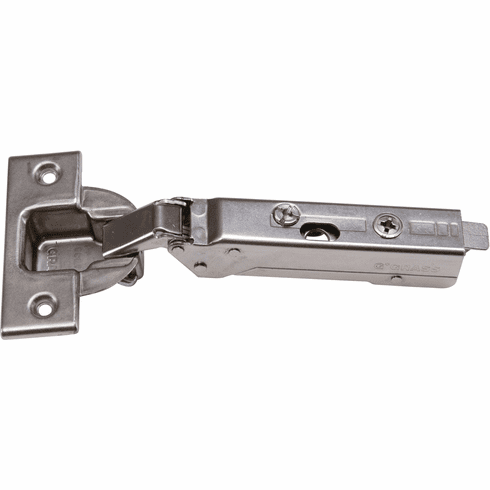

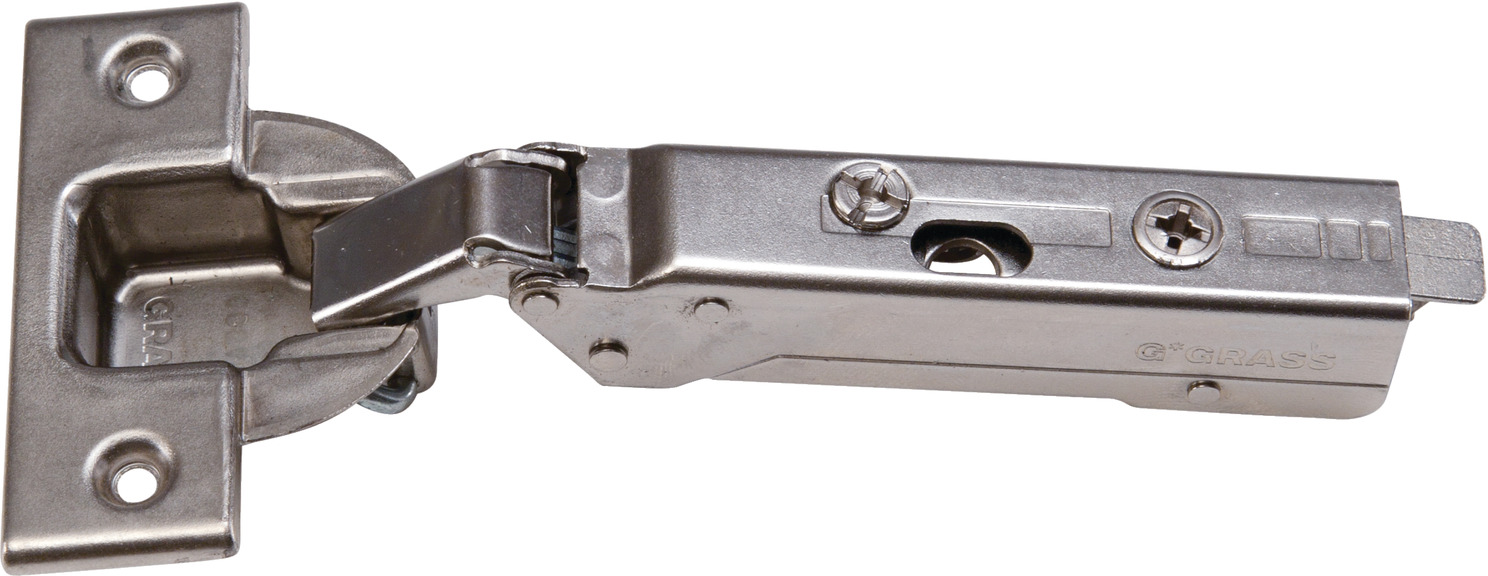

Hafele 348.31.101 Concealed Tipmatic Plus Hinge, Grass Tiomos 110 degree, Full Overlay Mounting for standard applications, with opening mechanism, Cup fixing: For screw fixing, without soft closing mechanism

Product Information

• Description

  Manufacturer: Hafele
  Item: 348.31.101

  Product Title: Concealed Hinge, Grass Tiomos 110°, Full Overlay Mounting, For standard applications, Cup fixing: For screw fixing, without soft closing mechanism

  Category: Concealed Hinge, Grass Tiomos 110°, Full Overlay Mounting, For standard applications

  Item Details …

  - optionally with or without integrated, 3-way adjustable soft closing mechanism in hinge arm

  - with automatic opening mechanism for convenient opening of front panels without handles

  - Optimum gap dimensions with door thickness of up to 24 mm

  - Area of application : for standard applications

  - Concealed hinge version : full overlay

  - Crank type : Cranked

  - For door material : wood

  - Door processing for assembly : with cup drilling

  - Material : Steel

  - Color/finish : nickel plated

  - Opening angle : 110°

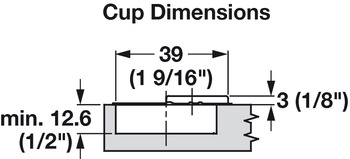

  - Cup drilling depth : 12.60 mm

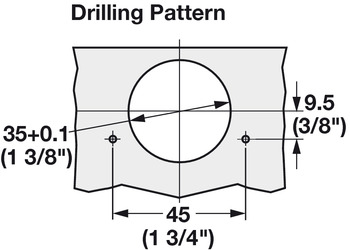

  - Cup drilling Ø : 35.00 mm

  - Adjustment facility : Side adjustment ±2 mm, Height adjustment ±2.5 mm, Depth adjustment -2?–?3 mm, Height adjustment depending on mounting plate

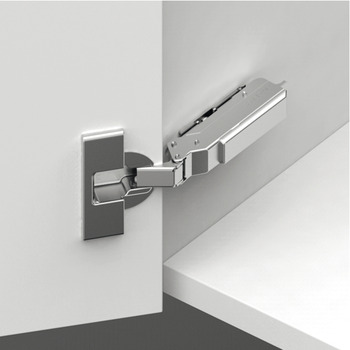

  - Installation : Door on cabinet without tools with clip system


  Additional Information …

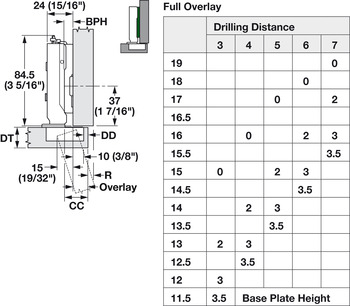

  The dimensions in the drawings are calculated with a mounting plate, distance 2 mm.Please order Grass Tipmatic separately for hinges with opening mechanism.
