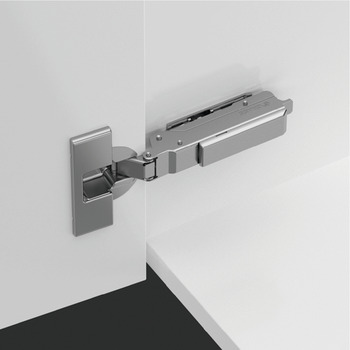

Hafele 348.34.802 Concealed Hinge, Grass TIOMOS, 94 degree Opening Angle, Half Overlay Screw-on, soft-close

Product Information

• Description

  Manufacturer: Hafele
  Item: 348.34.802

  Product Title: Concealed Hinge, Grass TIOMOS, 94º Opening Angle, Half Overlay, for thick doors and profile doors up to 36 mm, Screw-on, soft-close

  Category: Concealed Hinge, Grass TIOMOS, 94º Opening Angle, Half Overlay, for thick doors and profile doors up to 36 mm

  Item Details …

  - Area of application : For thick doors

  - Concealed hinge version : Half overlay mounting/twin mounting

  - Crank type : Cranked

  - For door material : wood

  - Door processing for assembly : with cup drilling

  - Material : Cup: Steel, Hinge arm: Zinc alloy

  - Color/finish : nickel plated

  - Opening angle : 95°

  - Cup drilling depth : 12.60 mm

  - Cup drilling Ø : 35.00 mm

  - Drilling pattern :

  - Adjustment facility : Side adjustment ±2 mm, Height adjustment ±2.5 mm, Depth adjustment -2?–?3 mm, Height adjustment depending on mounting plate


  Additional Information …

  Door overlay over 24mm possible, with side adjustments by ±2 mm.
