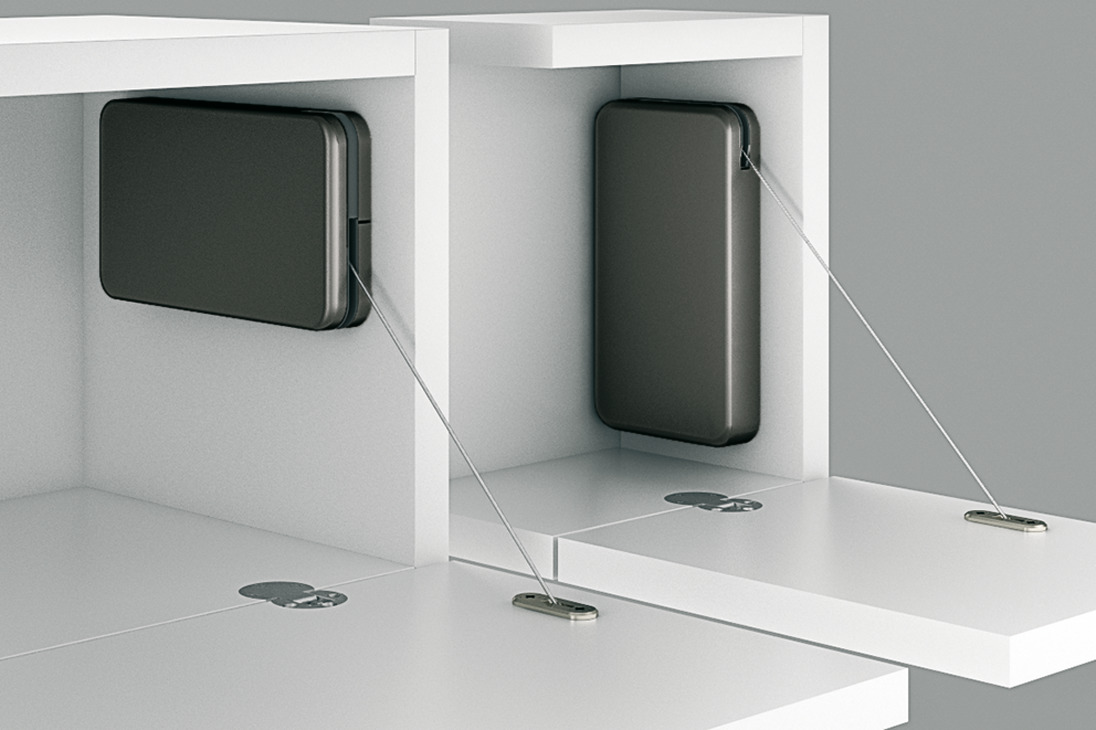

Hafele 365.47.333 Flap Stay MINIWINCH, version C, plastic, black

Product Information

• Description

  Manufacturer: Hafele
  Item: 365.47.333

  Product Title: Flap Stay, Miniwinch, Model: C, black

  Category: Flap Stay, Miniwinch,

  Item Details …

  - Area of application : for wooden flaps

  - Version : With soft and self closing mechanismWith pull cable

  - Material : Fitting and cover caps: Plastic, front fixing bracket: Zinc alloy

  - Color/finish : Fitting: Grey, front fixing bracket: Nickel plated

  - Lid material : Wood

  - For cabinet height : 200?–?480 mm

  - For cabinet depth : 110 mm

  - For lid weight : ?12 kg

  - Adjustment facility : Opening and closing force, opening angle

  - Installation : For screw fixing with Euro screws

  - Dimensions : Housing 89 x 23 x 163 mm (W x H x L) with horizontal use

  - Supplied with:

  - Front fixing bracket

  - Cover cap

  - Mounting material


  Additional Information …

  Reduce the flap weight during adjustment.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Installation instructions for flap stay with pull cable

  TCH_Furniture_Cabinetry_Hardware_2022|Page 9.158



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_9.95-9.97.pdf



• Required Products & Optional Accessories

  Optional Accessories:



  • Flap hinge, All Metal, 3 Way Adjustable and Detachable
  • Flap Hinge, 3-Way Adjustable and Detachable, Zinc
