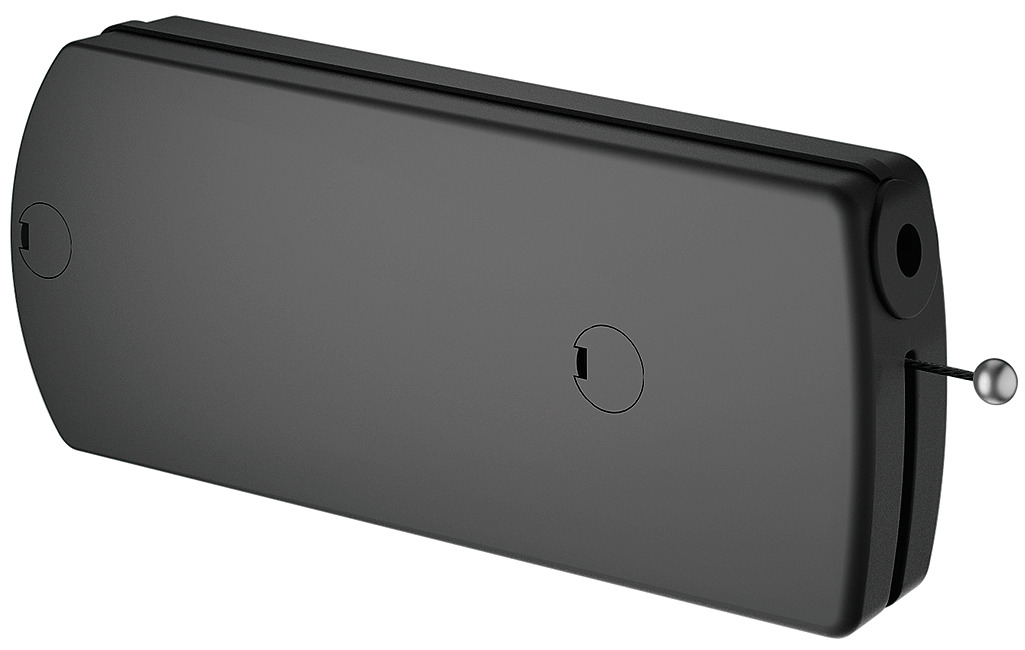

Hafele 365.48.310 Flap Stay MICROWINCH, version A, plastic, black

Product Information

• Description

  Manufacturer: Hafele
  Item: 365.48.310

  Product Title: Flap Stay, Microwinch, Model A, 40 N, black

  Category: Flap Stay, Microwinch,

  Item Details …

  - Opening angle adjustable

  - No time-consuming cabinet processing required

  - For horizontal or vertical use (extremely little space required inside the cabinet)

  - For right/left hand use

  - Opening angle adjustable

  - No time-consuming cabinet processing required

  - for horizontal or vertical use (very little space required inside the cabinet)

  - for right/left hand use

  - Area of application : for wooden flaps

  - Version : With pull cable

  - Material : Plastic

  - Color/finish : Front fixing bracket: Nickel plated

  - Lid material : Wood

  - For cabinet height : 210?–?480 mm

  - For cabinet depth : 82 mm

  - For lid weight : ?9 kg

  - Mounting : right and left hand use

  - Adjustment facility : Opening angle

  - Installation : For screw fixing with Euro screws

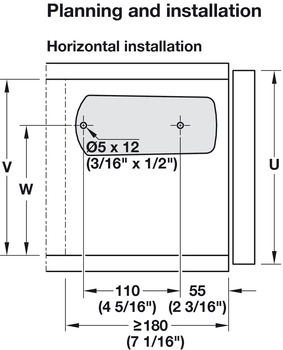

  - Dimensions : for horizontal use: 26 x 68 x 160 mm (W x H x L)

  - Supplied with:

  - Front fixing bracket

  - Mounting material


  Additional Information …

  Reduce the flap weight during adjustment.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Installation instructions for flap stay

  TCH_Furniture_Cabinetry_Hardware_2022|Page 9.161



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_9.98-9.99.pdf
