Hafele 372.27.321 Free Space 6.15, model G, anthracite, nickel plated

Product Information

• Description

  Manufacturer: Hafele
  Item: 372.27.321

  Product Title: Swing-Up Fitting, Häfele Free Space 6.15, Heavy Duty, for standard applications with handle, Model G, anthracite

  Category: Swing-Up Fitting, Häfele Free Space 6.15, Heavy Duty, for standard applications with handle

  Item Details …

  - Area of application : For heavy Lid Stay applications for door heights from 14" - 26". Door Weights from 14 - 57 Lbs.

  - Material : Housing: Plastic,Lever arm and support lever: Steel

  - Color/finish : Lever arm: Nickel plated

  - Lid material : Wood

  - Flap type : one-piece

  - For cabinet width : ?1,800 mm

  - For cabinet height : 350?–?650 mm

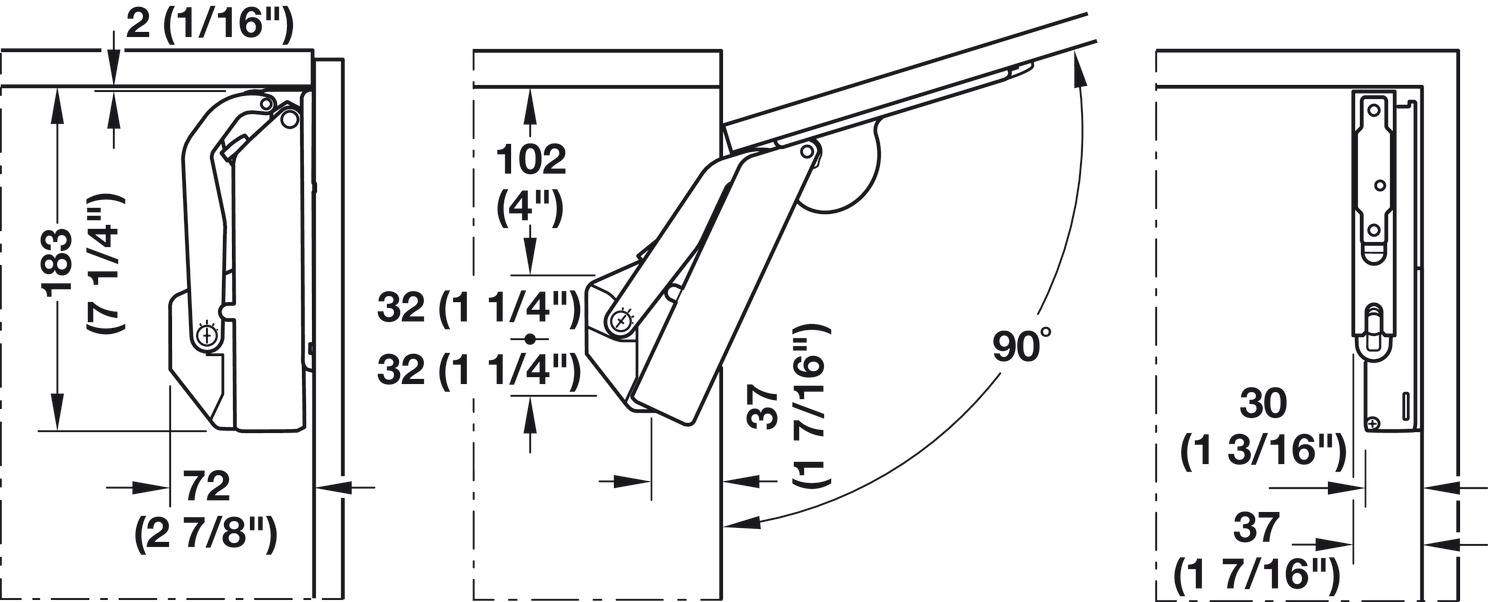

  - Installation depth : 72.00 mm

  - Installation Depth (inches) : 2 7/8"

  - Adjustment facility : Please use a Pozi Drive #2 bit for all screw installations and adjustments, otherwise damage to screw heads is likely. For door holding power adjustment, use a cordless driver as these screws are geared very low. Dor opening angle can be adjusted to 90° or 107° degrees.

  - Installation : The fitting mounts to the side panel with a single Euro Screw. The door mounts without tools and slides on to mounting plates.

  - For lid height : 650 mm

  - Order reference

  - The Free Space 6.15 is not applicable for aluminum framed doors

  - Supplied with:

  - 2 Fittings (right/left)

  - 2 Front fixing brackets with pre-mounted screws

  - 1 Set mounting instructions and paper drilling template


  Additional Information …

  ImportantSelecting the correct model depends on door height and then door weight which should also consider the weight of the handle. We recommend ordering the stronger fitting if in doubt.The lever arms are spring loaded. There is a risk of injury and damage to the fitting! After mounting the arms, do not press them down in the open position until the counterweight of the door is mounted.A Pozi Drive #2 bit is required for all screw installations and adjustment features, otherwise damage to the screw head is likely.Be certain that Euro screws which attach the fittings to the side panels are completely tight, drawing the fitting tight against the side wall. For tension adjustment feature, we recommend using a cordless driver as these screws are geared very low. Be sure to adjust both sides to the same tensioning position.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Free Space 6.15 Mounting Instructions

  Free Space 5.15 Push Sell Sheet EN

  Door Weight Calculation Chart

  Door Weight Ranges Chart_6.15



• Required Products & Optional Accessories

  Optional Accessories:



  • Drilling jig, Häfele, Free space
