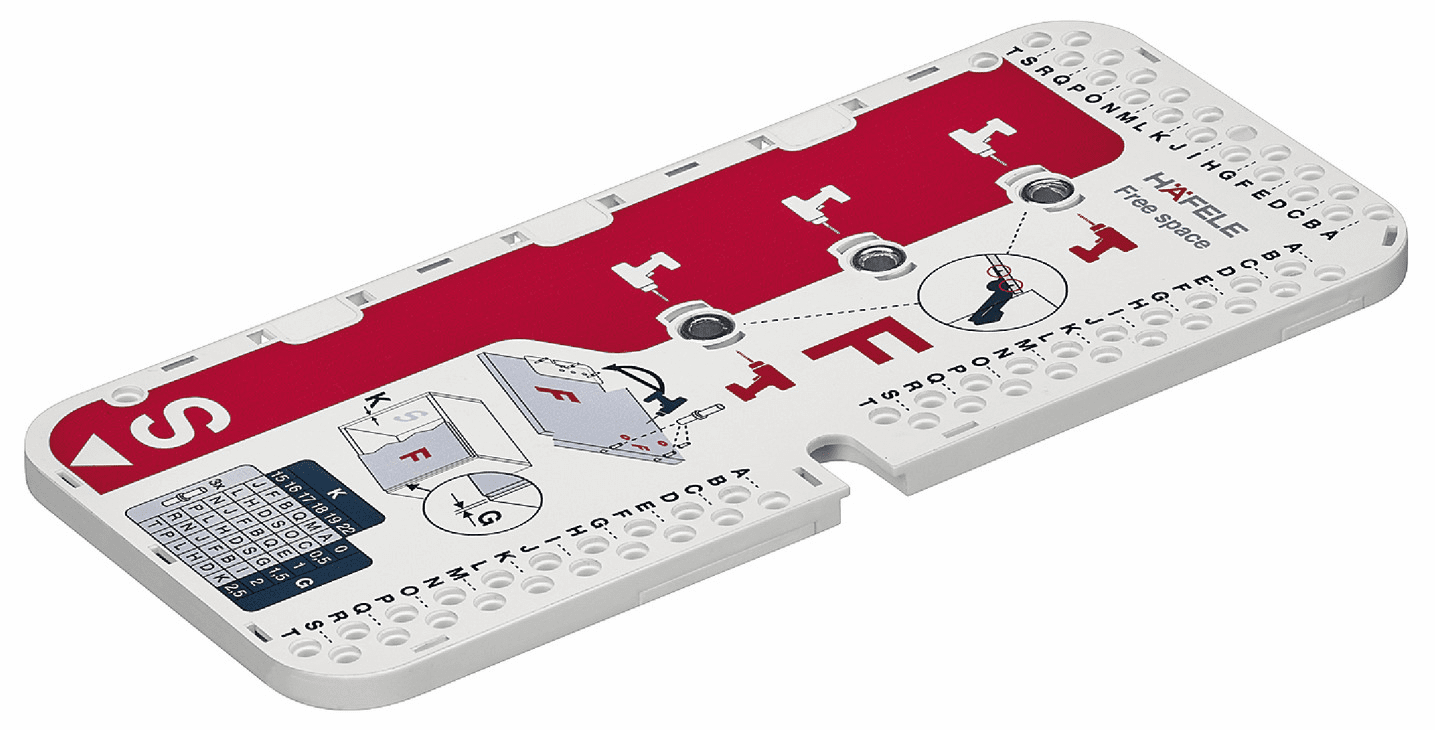

Hafele 372.27.602 Free Space Drilling Jig

Product Information

• Description

  Manufacturer: Hafele
  Item: 372.27.602

  Product Title: Drilling jig, Häfele, Free space, For pilot drilling the cabinet side panels and door panel, Suitable for Free space flap fitting

  Category: Drilling jig, Häfele, Free space, For pilot drilling the cabinet side panels and door panel, Suitable for Free space flap fitting

  Item Details …

  - Product type : Drilling jig

  - Area of application : For pilot drilling the cabinet side panels and flap front panel

  - Material : Plastic, with steel drilling sleeves

  - Supplied with:

  - Incl. 3 positioning pins


  Additional Information …

  For drilling patterns, please see Free space installation instructions.
