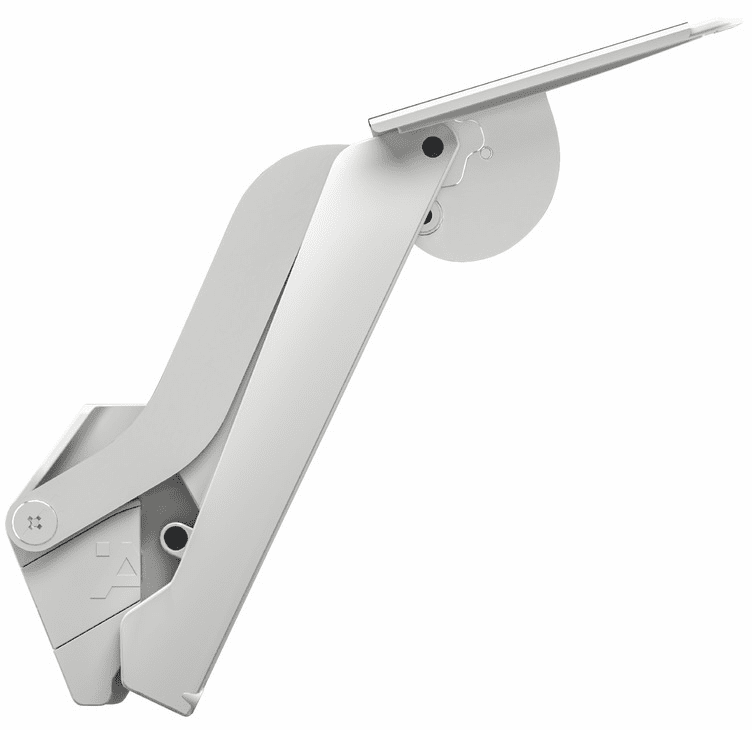

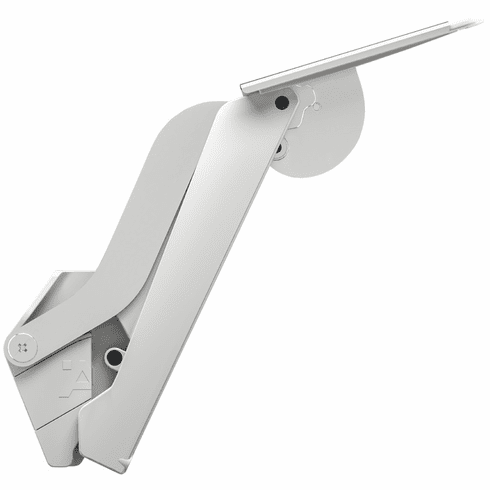

Hafele 372.27.701 Free Space 1.11, model C, white, nickel plated (1 kit), 37227701, 372-27-701Zoom

Hafele 372.27.701 Free Space 1.11, model C, white, nickel plated

$44.61$55.76You Save: $11.15 (20%)
Item# Hafele-372.27.701
Availability: in stock

Product Information

  • Description

    Manufacturer: Hafele
    Item: 372.27.701

    Product Title: Swing-Up Fitting, Häfele Free Space 1.11, for standard applications with handle, Model C, white

    Category: Swing-Up Fitting, Häfele Free Space 1.11, for standard applications with handle

    Item Details …

    -     Door opening can be adjusted to open at 90° or 107° with integrated stop

    - Fast simple installation: plugs into standard 32/37 mm line holes and fastens with one pre-mounted screw

    - Intuitive 3D door alignment and closing adjustment

    - Extremely powerful and versatile: the Free Space series can be used for a much wider range of applications – up to 80% of all flap applications

    - Extremely compact: modern design and Häfele engineered technology allow for more space inside a cabinet

    - Area of application : For door heights up to 650 mm (26")

    - Material : Steel

    - Color/finish : Lever arm: Nickel plated

    - Lid material : Wood, Aluminum frame

    - Flap type : one-piece

    - For cabinet width : ?1,800 mm

    - For cabinet height : 225?–?650 mm

    - Installation depth : 63.00 mm

    - Installation Depth (inches) : 2 1/2"

    - Adjustment facility : Please use a Pozi Drive #2 bit for all screw installations and adjustments. Door opening angle can be adjusted to 90° or 107° degrees.

    - Installation : The fitting mounts to the side panels with a single pre-mounted Euro screw. The door mounts without tools and slides onto the mounting plates.

    - For lid height : 650 mm

    - Order reference

    - For aluminum framed doors, order screws and collars set item #372.27.600 - see accessories. Minimum frame width is 45 mm (1 3/4").

    - Supplied with:

    - 2 Fittings (right/left)

    - 2 Mounting brackets with screws

    - 1 Set mounting instructions and paper drilling template


    Additional Information …

    ImportantSelecting the correct model depends on door height and then door weight which should also consider the weight of the handle. We recommend ordering the stronger fitting if in doubt.The lever arms are spring loaded. There is a risk of injury and damage to the fitting! After mounting the arms, do not press them down in the open position until the counterweight of the door is mounted.A Pozi Drive #2 bit is required for all screw installations and adjustment features, otherwise damage to the screw head is likely.Be certain that Euro screws which attach the fittings to the side panels are completely tight, drawing the fitting tight against the side wall. For tension adjustment feature, we recommend using a cordless driver as these screws are geared very low. Be sure to adjust both sides to the same tensioning position.

  • Data Sheet

  • Product Resources

  • Required Products & Optional Accessories

    Optional Accessories:

    • Sheet Metal Screw, Countersunk head, PH cross slot
    • Drilling jig, Häfele, Free space
