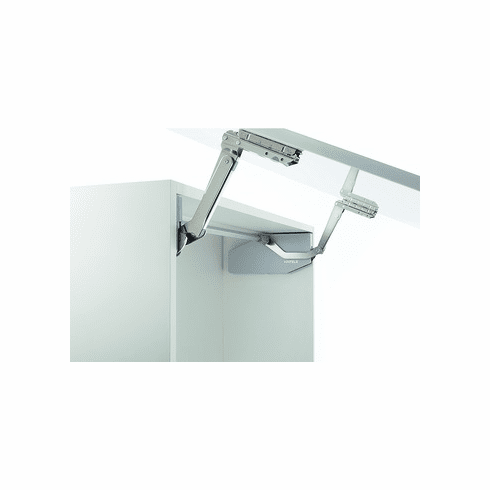

Hafele 372.34.512 Front lift up fitting, Free swing For one-piece flaps made of wood, glass or with aluminum frame, Flap weight: 18-30 lbs., model S8sw, end cap: white
, 37234512, 372-34-512 "Pin It")
Product Information
Description
Manufacturer: Hafele
Item: 372.34.512
Product Title: Front lift up fitting, Free swing, For one-piece flaps made of wood, glass or with aluminum frame, Flap weight: 18-30 lbs., model S8sw, end cap: white
Category: Front lift up fitting, Free swing, For one-piece flaps made of wood, glass or with aluminum frame
Item Details …
- Optimum access to cabinet contents
- Ideal for large front panels
- Modern design thanks to clear lines
- Minimum opening resistance, multi-position stop function and soft opening and soft closing mechanism for a unique operational feel
- Efficient and time-saving processing thanks to pins, pre-mounted Euro screws, quick fixing system for front panel and cross bar, and eccentric front panel adjustment
- Full access to the cabinet contents; Ideal for large front panels; Modern design with clear-cut contours
- Minimum opening resistance, multi-position stop function and soft opening and soft closing mechanism for ease of operation
- Time-saving assembly provided by tabs, pre-mounted Euro screws and clip mounting of front panel and cross bar, eccentric adjustment of front panel
- Area of application : For one-piece doors made from wood, glass or with aluminum frame
- Material : Steel
- Color/finish : Fitting: Nickel plated
- Color/Finish cover : Grey
- Lid material : Wood, Glass, Aluminum frame
- Flap type : one-piece
- For cabinet depth : 273 mm
- Adjustment facility : Height adjustment ±15 mm side adjustment ±15 mm tilting angle ±15° holding power
- Order reference
- Cross bars and adapters for glass front panels or narrow aluminum frames (if applicable) must be ordered separately.
- Use two Free swing sets for flap widths > 1800 mm (70 7/8”).
- Supplied with:
- 1 lift up flap fitting set (1 piece each left/right, including front fixing brackets for wooden flaps or flaps with wide aluminium frame, installation instructions and paper drilling template)
- 1 set of cover caps, grey (1 piece each left/right)Data Sheet
Product Resources
Specifications
For detailed PDF specifications, click:
Hafele Catalog Page: selection_9.132-9.145.pdf
Please contact us for more information about this productRequired Products & Optional Accessories
Note: Add the current product in cart before ordering required products below ...
Required Products:
Drilling Jig, for Front Panel Brackets (choose one):For pre-drilling the front fixing brackets, suitable for Häfele Free flap 1.7, Free flap 3.15, Free fold, Free up, Free swing flap fittings 372.64.893 Click to order
Optional Accessories:- Cross Bar, for Free Swing
- Aluminum Door Bracket, for Free Flap 1.7 / 3.15 / Strato
- Drilling Jig, for Free Swing, Side Wall
- Drilling Jig, for Front Panel Brackets
