Hafele 372.37.591 Free Fold, K6FO, gray, 960-1010mm, 19-38lb (1 ), 37237591, 372-37-591Zoom

Hafele 372.37.591 Double Door Lift-Up Fitting, Free Fold For 2-piece frame doors, Door weight: 18.9-38 lbs., model K6fo

$206.96$258.70You Save: $51.74 (20%)
Item# Hafele-372-37-591
Availability: limited availability (8 or less)

Product Information

  • Description

    Manufacturer: Hafele
    Item: 372.37.591

    Product Title: Double Door Lift-Up Fitting, Free Fold, For 2-piece frame doors, Door weight: 18.9-38 lbs., model K6fo

    Category: Double Door Lift-Up Fitting, Free Fold, For 2-piece frame doors

    Item Details …

    -     Even high front panels can be folded up in a space-saving way

    - Modern design thanks to clear lines

    - Minimum opening resistance, multi-position stop function and soft opening and soft closing mechanism for a unique operational feel

    - Efficient and time-saving processing thanks to pins, pre-mounted Euro screws and quick fixing system for the front panel

    - Even high front panels can be lifted up in a space-saving way

    - Modern design with clear-cut contours

    - Minimum opening resistance, multi-position stop function and soft opening and soft closing mechanism for ease in operation

    - Time-saving assembly provided by tabs, pre-mounted Euro screws and clip mounting of front panel

    - Area of application : For 2-piece or aluminum frame doors of equal size

    - Material : Plastic

    - Color/finish : Fitting: Nickel plated

    - Color/Finish cover : cover cap: Gray, white or anthracite

    - Lid material : Wood, Aluminum frame

    - Flap type : two-piece with division 1:1

    - Cabinet depth :

    - Installation depth : 288.00 mm

    - Installation length : Double Door Lift-Up Fitting

    - Adjustment facility : Height/side/depth of top front panel (via concealed hinge) and bottom front panel (via centre hinge)Holding power/centre pull (via fitting)

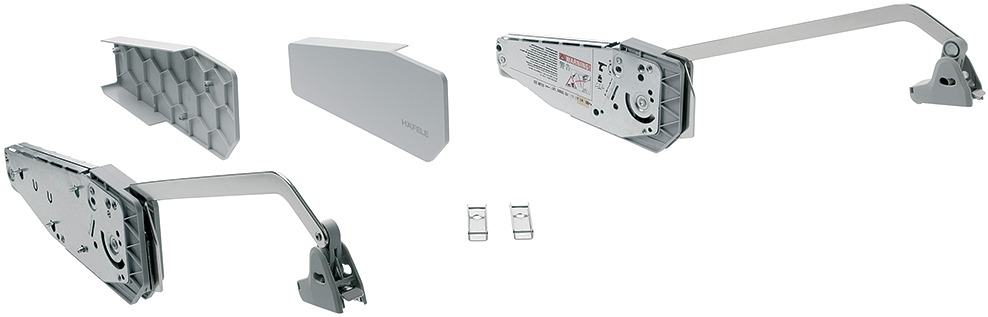

    - Supplied with:

    - 2 Fittings (right/left)

    - Front mounting material for wood doors or doors with wide

    - Aluminum frame

    - Installation instructions

    - Paper drilling template

    - 2 Cover caps for fitting (right/left)


    Additional Information …

    Concealed hinges for mounting the door to the cabinet, connecting hinges and adapters for narrow aluminum frames (if applicable) must be ordered separately. The specified models apply to common door heights and weights and taller front panels with lower door weights can also be implemented in individual cases.

  • Data Sheet

  • Product Resources

  • Required Products & Optional Accessories

    Note: Add the current product in cart before ordering required products below ...

    Required Products:

    Connecting Hinge, for Doors with 20 mm (13/16") Aluminum or Wood Frame (choose one):


    Adapter, for Doors with 20 mm (13/16") Aluminum Frame (choose one):


    Optional Accessories:

    • Concealed Hinge, Salice 200 Series, 110° Opening Angle, Full Overlay, Nickel plated
    • Connecting Hinge, for Doors with 20 mm (13/16") Aluminum or Wood Frame
    • Adapter, for Doors with 20 mm (13/16") Aluminum Frame
    • Drilling Jig, for Free Fold, Side Wall
    • Drilling Jig, for Front Panel Brackets

  • Brand PDF Catalogs

Cannot find your product? click: Help!. Our product experts will assist you.

Quick Metric Conversions: 25mm = 1 inch (approx), 2.5cm = 1 inch (approx), 96mm = 3.75 inches
