Hafele 372.37.594 Double Door Lift-Up Fitting, Free Fold For 2-piece frame doors, Door weight: 14.3-28.2 lbs., model K5fo

Product Information

• Description

  Manufacturer: Hafele
  Item: 372.37.594

  Product Title: Double Door Lift-Up Fitting, Free Fold, For 2-piece frame doors, Door weight: 14.3–28.2 lbs., model K5fo

  Category: Double Door Lift-Up Fitting, Free Fold, For 2-piece frame doors

  Item Details …

  - Even high front panels can be folded up in a space-saving way

  - Modern design thanks to clear lines

  - Minimum opening resistance, multi-position stop function and soft opening and soft closing mechanism for a unique operational feel

  - Efficient and time-saving processing thanks to pins, pre-mounted Euro screws and quick fixing system for the front panel

  - Even high front panels can be lifted up in a space-saving way

  - Modern design with clear-cut contours

  - Minimum opening resistance, multi-position stop function and soft opening and soft closing mechanism for ease in operation

  - Time-saving assembly provided by tabs, pre-mounted Euro screws and clip mounting of front panel

  - Area of application : For 2-piece or aluminum frame doors of equal size

  - Material : Plastic

  - Color/finish : Fitting: Nickel plated

  - Color/Finish cover : cover cap: Gray, white or anthracite

  - Lid material : Wood, Aluminum frame

  - Flap type : two-piece with division 1:1

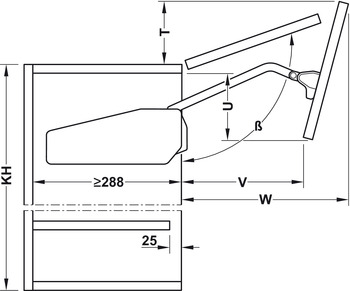

  - Cabinet depth : Min. 11 5/16"

  - Installation depth :

  - Installation length :

  - Adjustment facility : Height/side/depth of top front panel (via concealed hinge) and bottom front panel (via centre hinge)Holding power/centre pull (via fitting)

  - Supplied with:

  - 2 Fittings (right/left)

  - Front mounting material for wood doors or doors with wide

  - Aluminum frame

  - Installation instructions

  - Paper drilling template

  - 2 Cover caps for fitting (right/left)


  Additional Information …

  Concealed hinges for mounting the door to the cabinet, connecting hinges and adapters for narrow aluminum frames (if applicable) must be ordered separately. The specified models apply to common door heights and weights and taller front panels with lower door weights can also be implemented in individual cases.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Drilling template

  Installation instructions for Free Fold

  Door Weight Calculation Chart

  TCH_Furniture_Cabinetry_Hardware_2022|Page 9.131



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_9.132-9.145.pdf



  Please contact us for more information about this product

• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

  Connecting Hinge, for Doors with 20 mm (13/16") Aluminum or Wood Frame (choose one):


  • installation: With chipboard screws installation: With Euro screws

    372.64.796 372.64.797

    Click to order Click to order



  Adapter, for Doors with 20 mm (13/16") Aluminum Frame (choose one):


  • For Free fold, Nickel plated

    372.37.044

    Click to order



  Optional Accessories:



  • Concealed Hinge, Salice 200 Series, 110° Opening Angle, Full Overlay, Nickel plated
  • Connecting Hinge, for Doors with 20 mm (13/16") Aluminum or Wood Frame
  • Adapter, for Doors with 20 mm (13/16") Aluminum Frame
  • Drilling Jig, for Free Fold, Side Wall
  • Drilling Jig, for Front Panel Brackets
