Hafele 372.38.574 Double Door Lift-Up Fitting, Free fold short Model: I5fs, Gray

Product Information

• Description

  Manufacturer: Hafele
  Item: 372.38.574

  Product Title: Double Door Lift-Up Fitting, Häfele Free fold short, For two-piece flaps with division 1:1 made from wood or with aluminum frame, Model: I5fs, Gray

  Category: Double Door Lift-Up Fitting, Häfele Free fold short, For two-piece flaps with division 1:1 made from wood or with aluminum frame

  Item Details …

  - Even high front panels can be folded up in a space-saving way

  - Modern design thanks to clear lines

  - Minimum opening resistance, multi-position stop function and soft opening and soft closing mechanism for a unique operational feel

  - Efficient and time-saving processing thanks to pins, pre-mounted Euro screws and quick fixing system for the front panel

  - Area of application : For 2-piece or aluminum frame doors of equal size

  - Material : Fitting: Plastic, steelcover cap: Plastic

  - Color/finish : Fitting: Nickel plated

  - Color/Finish cover : Gray

  - Lid material : Wood, Aluminum frame

  - Flap type : two-piece with division 1:1

  - For internal cabinet depth min. : 10 5/8"

  - Cabinet depth : Min. 10 5/8"

  - Adjustment facility : Height/side/depth of top front panel (via concealed hinge) and bottom front panel (via centre hinge) Holding power/centre pull (via fitting)


  Additional Information …

  Concealed hinges for mounting the door to the cabinet, connecting hinges and adapters for narrow aluminum frames (if applicable) must be ordered separately. The specified models apply to common door heights and weights. Shorter front panels with higher door weights and taller front panels with lower door weights can also be implemented in individual cases.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

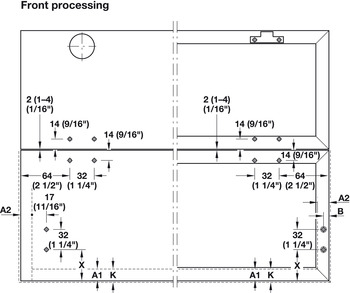

  Free fold short drilling template

  Installation instructions for Free fold short

  Door Weight Calculation Chart

  TCH_Furniture_Cabinetry_Hardware_2022|Page 9.134



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_9.132-9.145.pdf



• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

  Connecting Hinge, for Doors with 20 mm (13/16") Aluminum or Wood Frame (choose one):


  • installation: With chipboard screws installation: With Euro screws

    372.64.796 372.64.797

    Click to order Click to order



  Adapter, for Doors with 20 mm (13/16") Aluminum Frame (choose one):


  • For Free fold, Nickel plated

    372.37.044

    Click to order
