Hafele 372.96.001 Lift System, Salice Wind soft close, D (yellow/free) spring close, 8 5/8 - 24" door height, FRAKFEXDSN9

Product Information

• Description

  Manufacturer: Hafele
  Item: 372.96.001

  Product Title: Lift System, Salice Wind, soft close, D (yellow/free) spring close, 8 5/8 - 24" door height, FRAKFEXDSN9

  Category: Lift System, Salice Wind,

  Item Details …

  - Inset doors are possible with 6 mm (1/4”) shim on the side with 28 mm (1 1/8”) max. door thickness 35 mm (1 3/8”)

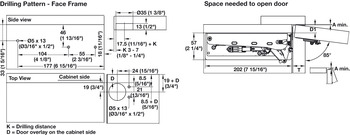

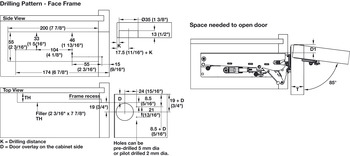

  - Drilling of the door – 13 mm (1/2”) deep

  - Tab (K) distance: 3-7 mm

  - Compact and elegant design

  - Adjustable spring strength

  - Mounts at the top of a frameless cabinet - block out for face frame

  - Optional top mounting bracket

  - Angle restrictor clip of 85d is included

  - 94d opening without restrictor clip

  - Material : Steel

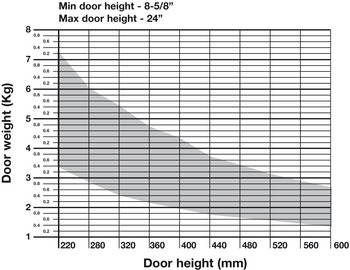

  - For lid height : 219?–?610 mm

  - Order reference

  - Order covers separately.

  - Top mount brackets and covers available soon.

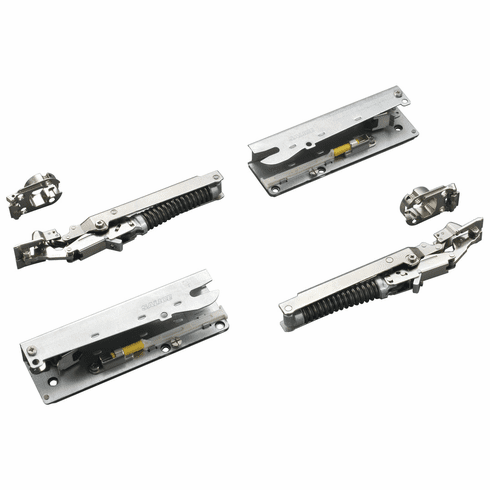

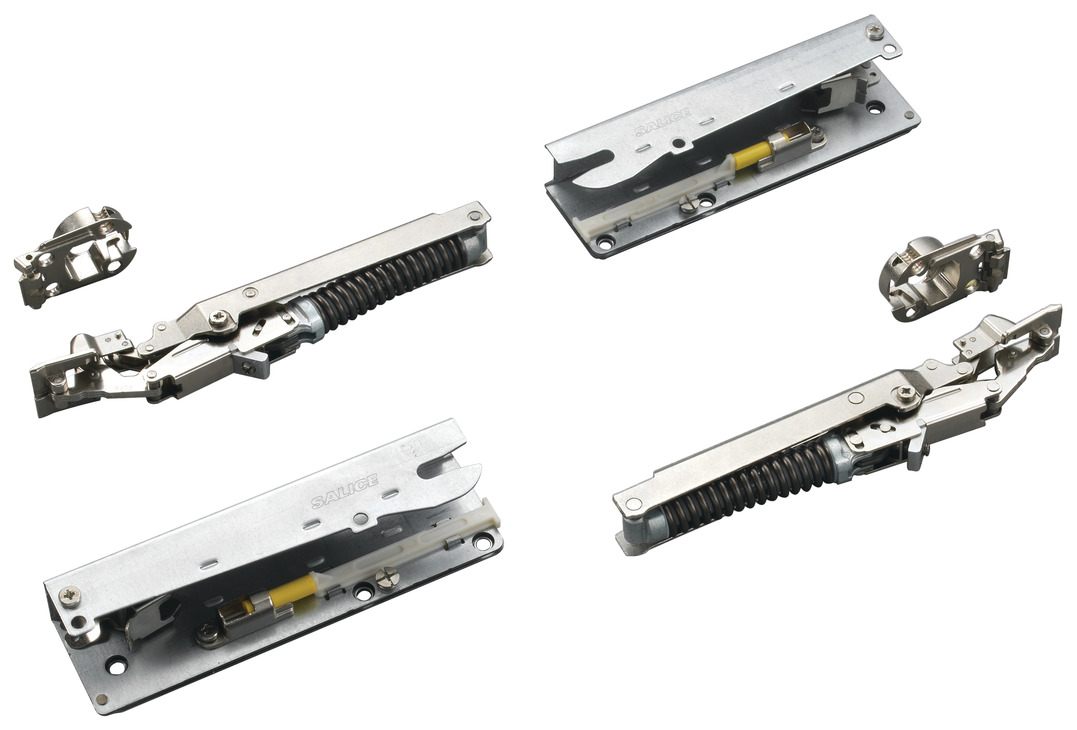

  - Supplied with:

  - 2 Hinge cups

  - 1 RH and 1 LH lift mechanism

  - 1 RH and LH cabinet base

  - 5 mm x 13 mm Euro screws (#7 x 5/8” wood screws can also be used)

  - Mounting instructions

• Data Sheet

  Detailed Data Sheet

• Product Resources

  Salice Wind Mounting Instructions

  TCH_Furniture_Cabinetry_Hardware_2022|Page 9.142



• Required Products & Optional Accessories

  Optional Accessories:



  • Wind Covers, Salice
  • Wind Top Mount Bracket and Cover Set, Salice
